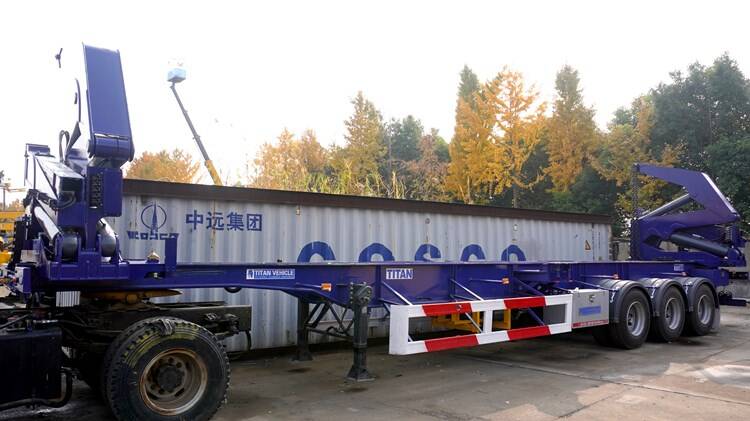

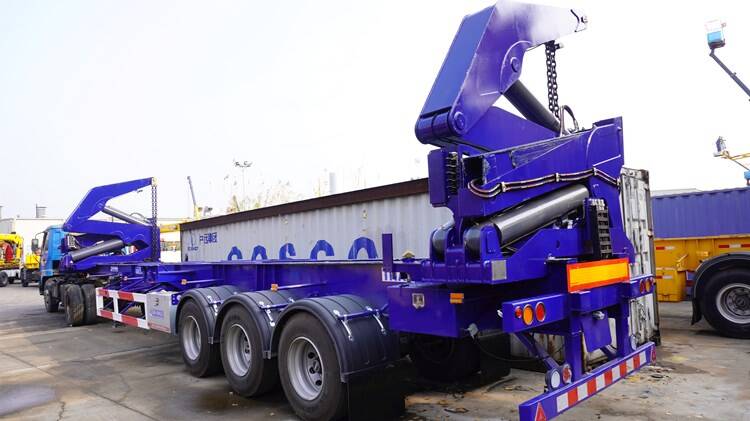

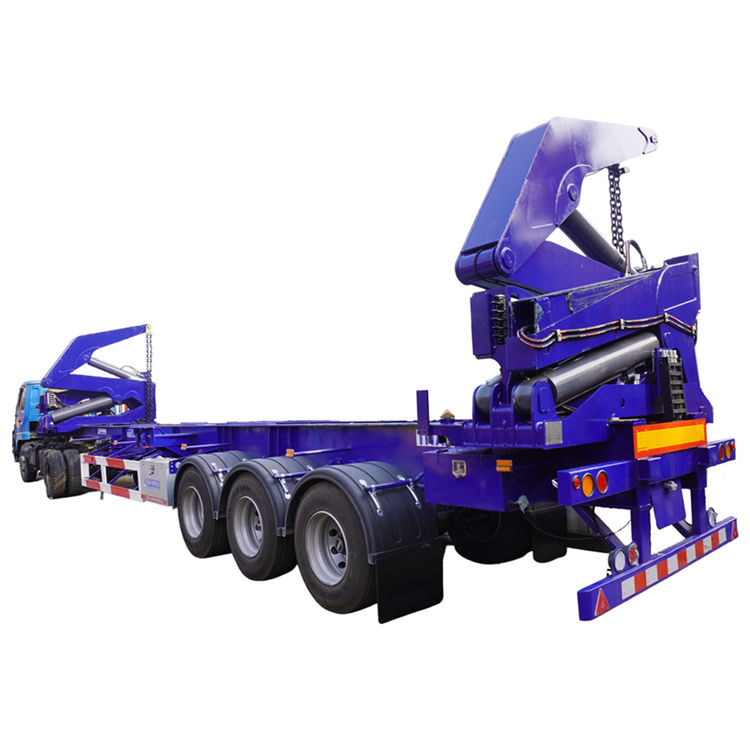

TITAN side loader for sale adopts wireless remote control technology, loading container just takes 10 mins. TITAN sideloaders are used for loading and unloading 20ft and 40ft containers.
The multiple applications possible with the side loader for sale make it an indispensable tool for your organization, whether it is for transfers, grounding, lifting or double stacking.
Sideloader Side Loader for Sale In Papua New Guinea
Sideloader Side Loader for Sale In Papua New Guinea
Sideloader Side Loader for Sale In Papua New Guinea
Max. lifting capacity: 40Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa

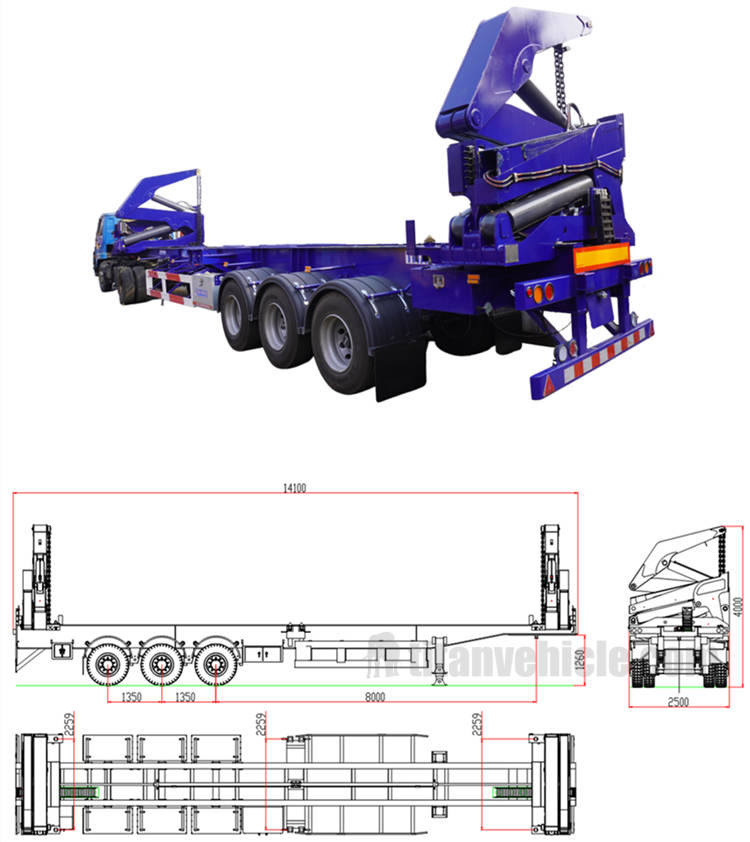

Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
TITAN side loader for sale adopt remote control which is made to order for the ambient environment, performance need, operation process and standard, What we used is wireless remote control, its receiver need to fixed installation, The protection grade of the receiver is very high, it can be installed in the open air.

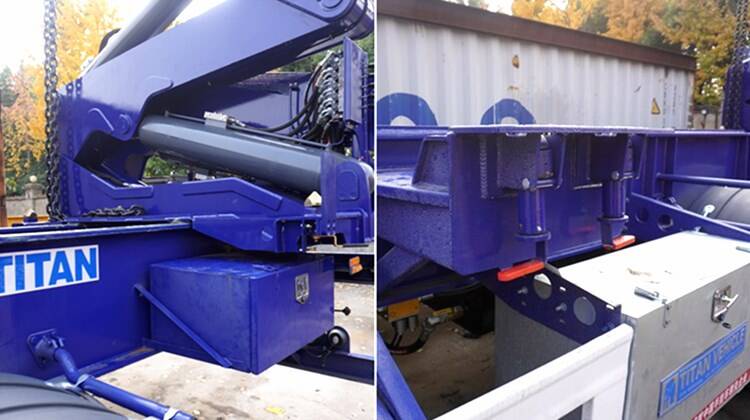

The welding structure of the crane is made of ultra-high-strength steel, which can ensure the highest possible strength while still reducing the load to increase the load. Each crane includes the main boom, which has a 2-step telescopic boom and is operated by a double-acting telescopic cylinder integrated in the arm gear.
Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
