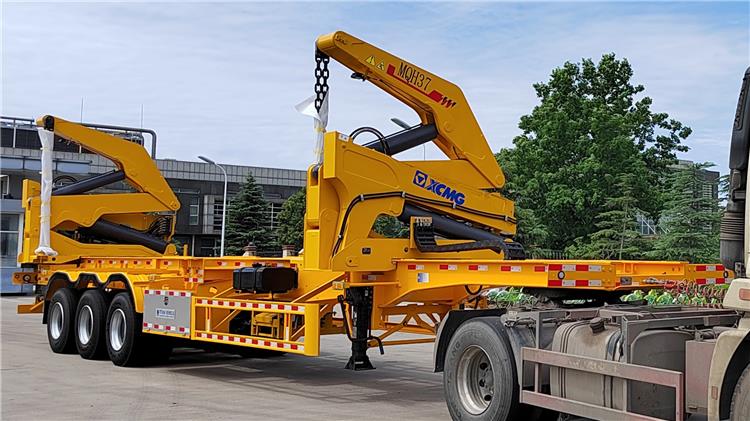

40 Ft Container Side Loader
40 Ft Container Side Loader 40 Ft Container Side Loader

40 Ft Container Side Loader

74500 USD

40 ft container side loaderadopts a wireless remote control system, equipped with imported remote control, which is easy to operate and reliable in micro movement.

Side Loaders Price: 74500USD

The side loaders can be moved back and forth and can be used for both standard 20 and 40 foot containers.

The side loaders structural parts are welded from high-strength imported steel plates, and the entire vehicle has undergone stress tests.

Side Loaders | Container Side Loader for Sale in Guyana

Side Loaders | Container Side Loader for Sale in Guyana

Side Loaders | Container Side Loader for Sale in Guyana

Side Loaders | Container Side Loader for Sale in Guyana

Side Loaders | Container Side Loader for Sale in Guyana

Side Loaders | Container Side Loader for Sale in Guyana

Side Loaders | Container Side Loader for Sale in Guyana

Side Loaders | Container Side Loader for Sale in Guyana



Specification of Container Loader for Sale

Max. lifting capacity: 37Ton

Max.stabilizer outreach: 3200mm

Max.working range: 4000mm

Overall height: 2500mm

Overall length: 1020mm

Max.pressure of hydraulic system: 28Mpa

Dimension(L*W*H): 14100*2500*4200mm

Tow Chain: lgus (imported)

Power source: Power take-off (equipped)

Hydraulic pump: Gear type Casappa Italy

Direction control valves: AMCA Holand

Remote Control: NBB Germany

Axle: 3 axle* 13 ton (220mm brake pads)

Tire: 12 pcs, 12R22.5

Suspension: Heavy-duty type mechanical spring suspension

Kingpin: 3.5-inch bolted type

Braking system: WABCO Emergency valve

Landing gear: JOST



Package of Container Side Loader for Sale

The container side loader for sale is generally delivered by bulk carriers or ro-ro ships. Before delivery, we spray the entire vehicle with wax, and important parts such as the boom are covered with a layer of rain cloth.

Specification of Container Loader for Sale Max. lifting capacity: 40Ton  Max.stabilizer outreach: 3200mm  Max.working range: 4000mm  Overall height: 2500mm  Overall length: 1020mm  Max.pressure of hydraulic system: 28Mpa  Dimension(L*W*H): 14100*2500*4200mm  Tow Chain: lgus (imported)  Power source: Power take-off (equipped)  Hydraulic pump: Gear type Casappa Italy  Direction control valves: AMCA Holand  Remote Control: NBB Germany  Axle: 3 axle* 13 ton (220mm brake pads)  Tire: 12 pcs, 12R22.5  Suspension: Heavy-duty type mechanical spring suspension  Kingpin: 3.5-inch bolted type  Braking system: WABCO Emergency valve  Landing gear: JOST



Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.

40 foot 45T Side Loader Container Trailer for Sale | TITAN Side Lifters
