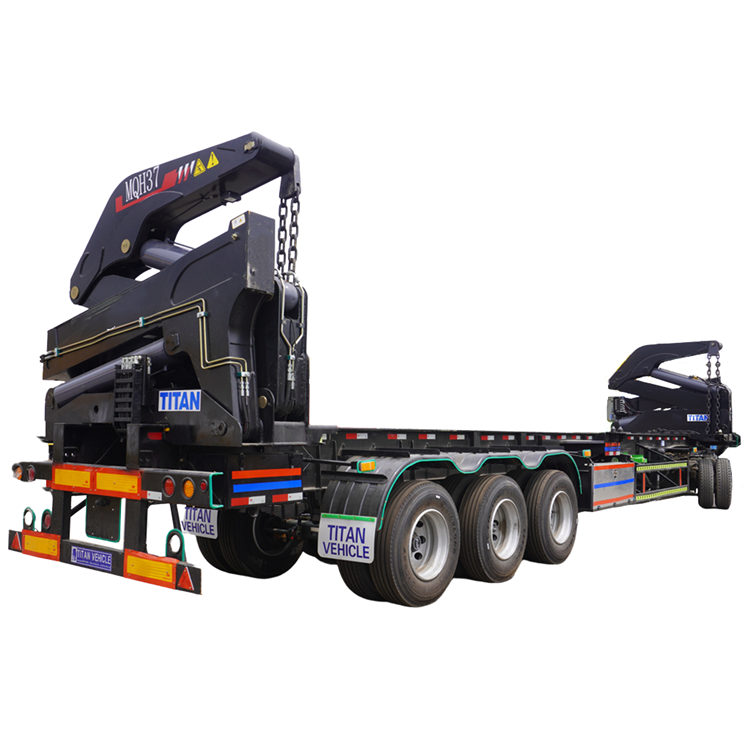

40 Ton Sidelifter Container Trailer
40 Ton Sidelifter Container Trailer

40 Ton Sidelifter Container Trailer

76250 USD

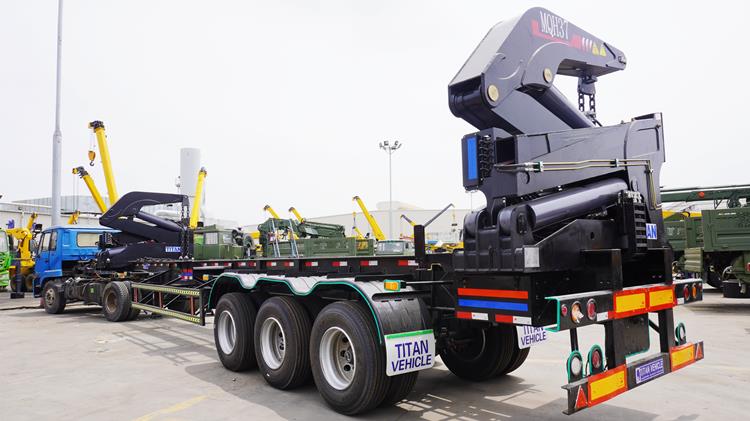

40 ton sidelifter container trailer is a self-loading trailer, typically skeletal, with two hydraulic lifting cranes to lift a container onto it. It can be operated by the driver using controls on the side of the trailer or remote control.

Sidelifter Container Trailer for Sale Price: 76250USD

TITAN container side loader integrates the functions of loading, unloading and transporting containers, which is reliable and efficient;

The longitudinal beam of the container side loader trailer frame adopts a high-section variable-section design, and the crane structural parts are welded with high-strength steel plates.

Sidelifter Container Trailer for Sale in Fiji - Container Loader for Sale

Sidelifter Container Trailer for Sale in Fiji - Container Loader for Sale

Sidelifter Container Trailer for Sale in Fiji - Container Loader for Sale

Sidelifter Container Trailer for Sale in Fiji - Container Loader for Sale

Sidelifter Container Trailer for Sale in Fiji - Container Loader for Sale

Sidelifter Container Trailer for Sale in Fiji - Container Loader for Sale

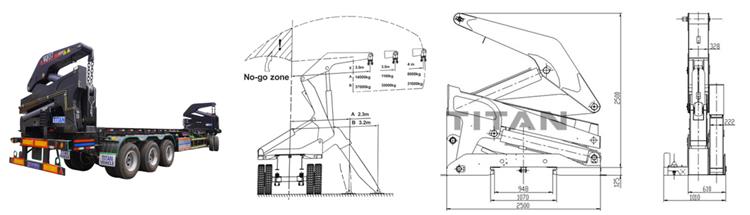

Specification of Container Loader for Sale

Max. lifting capacity: 40Ton

Max.stabilizer outreach: 3200mm

Max.working range: 4000mm

Overall height: 2500mm

Overall length: 1020mm

Max.pressure of hydraulic system: 28Mpa

Dimension(L*W*H): 14100*2500*4200mm

Tow Chain: lgus (imported)

Power source: Power take-off (equipped)

Hydraulic pump: Gear type Casappa Italy

Direction control valves: AMCA Holand

Remote Control: NBB Germany

Axle: 3 axle* 13 ton (220mm brake pads)

Tire: 12 pcs, 12R22.5

Suspension: Heavy-duty type mechanical spring suspension

Kingpin: 3.5-inch bolted type

Braking system: WABCO Emergency valve

Landing gear: JOST

Sidelifter Container Trailer for Sale in Fiji - Container Loader for Sale

FAQ of Sidelifter Container Trailer

1:Are you the original manufacturer?

A.Yes, TITAN is the official leading manufacturer in construction machinery in China and we have the whole series of products you need.

2:What kind of terms of payment can be accepted?

A: Normally we can work on the T/T term or L/C term.

3:Which incoterms 2010 terms can we work on?

A: Normally we work on FOB, CFR, CIF.

4:What about the delivery time?

A:7-30 days after receiving the deposit.

5:What about the warranty time?

A:12 months after shipment or 2000 working hours.

6. What about the Minimum Order Quantity?

A: The MoQ is 1 pcs.

Sidelifter Container Trailer for Sale in Fiji - Container Loader for Sale

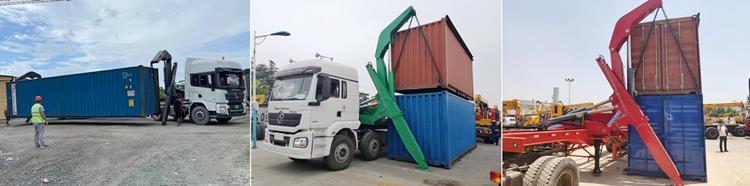

Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
