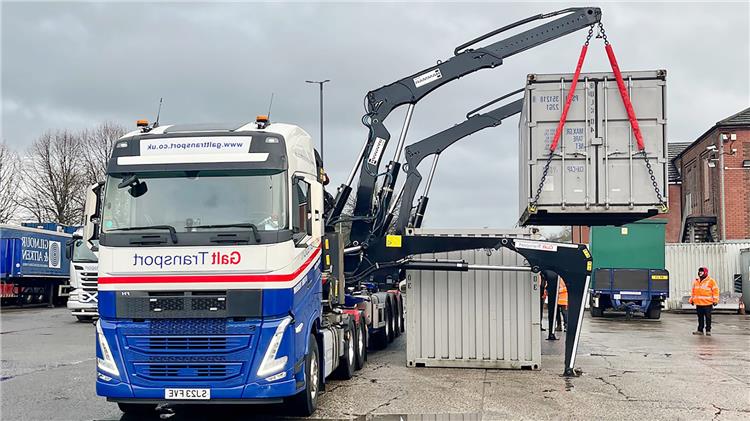

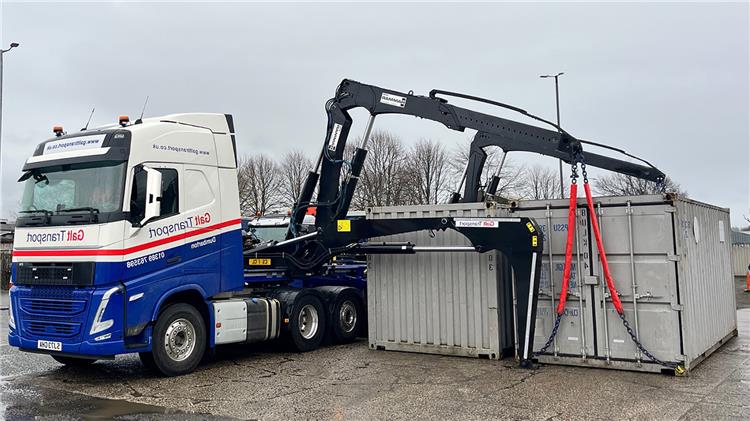

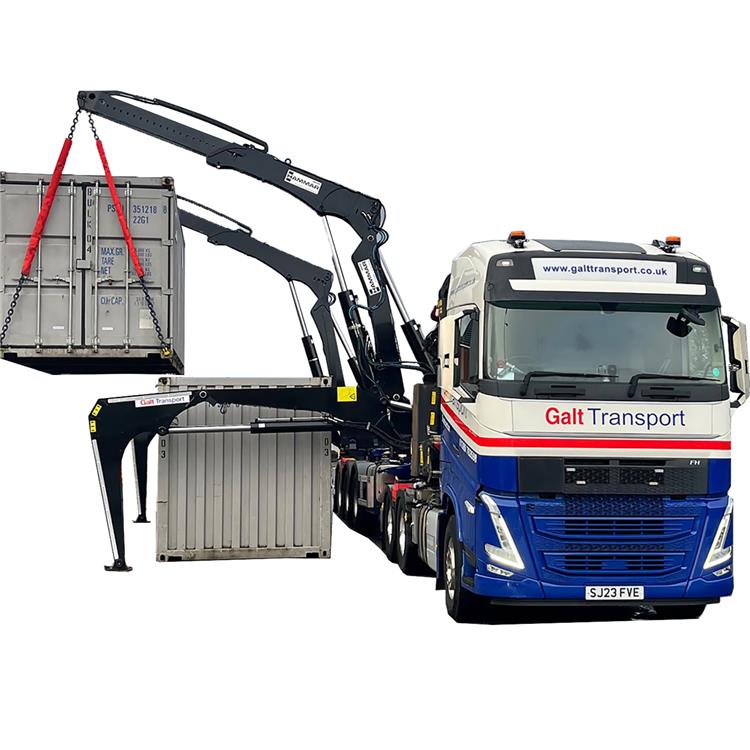

The Hammar Side Loader is more than just a transport semi-trailer; it's a mobile heavy-duty crane and stacker. It saves you expensive lifting costs and instantly doubles your site utilization using 'double-row stacking' technology.
Hammar 500 Side Loader Trailer for Sale In Papua New Guinea
Hammar 500 Side Loader Trailer for Sale In Papua New Guinea
Hammar 500 Side Loader Trailer for Sale In Papua New Guinea
Max. lifting capacity: 37Ton
Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Landing gear: JOST
Power source: Power take-off (equipped)
The Hammar Side Loader boasts a maximum operating radius of 6 meters, setting an industry benchmark for side-loading trucks. This not only means it can load and unload from a greater distance but also allows the vehicle to operate in complex terrain where it cannot be placed close to containers.

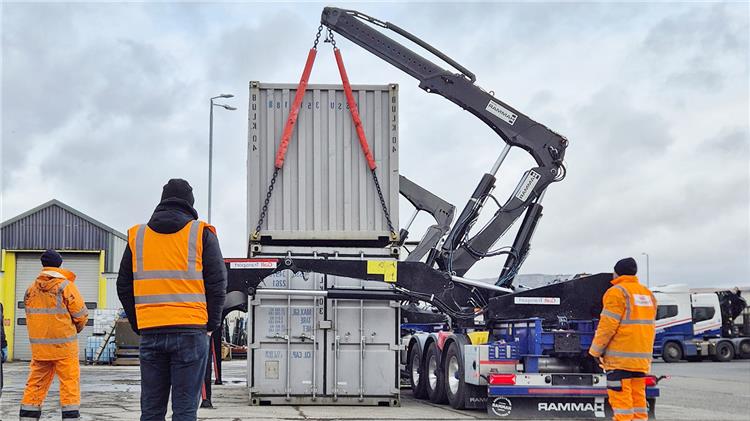

The Hammar 500 has a safe working load (SWL) of 45 tons, capable of handling the vast majority of fully loaded heavy containers and irregularly shaped oversized items. The Hammar 500's stacking capacity makes efficient use of space; it is one of the very few side-loading trucks globally capable of achieving "2-layer height, 2-row depth" stacking. The Hammar 500 still has a lifting capacity of 15-17 tons, meaning it can not only stack empty containers but also easily handle containers loaded with medium-weight cargo.
The Hammar side loader's support legs can traverse obstacles or the deck of another trailer, a key feature ensuring its 6-meter span. When transferring with other vehicles, the support legs form a "tunnel," allowing other trucks to drive directly into the loading/unloading area without repeated movement.
The Hammar 500 heavy equipment transport system, with a 45-ton load capacity, is used to transport generator sets, precast concrete components, and large machinery. In remote areas and mines lacking fixed loading/unloading facilities, it independently handles the unloading, loading, and relocation of containers. The Hammar side loader's 17-ton double-row stacking capacity transforms it from a simple transport tool into a "mobile crane + stacker crane," significantly reducing reliance on expensive handling equipment.
