The Hammar Side Loader is a trailer equipped with two heavy-duty cranes and a hydraulic pump station, but the Hammar 195 C is the lightest heavy-duty side-loader trailer in its class globally.
The 3-axle, 36-ton Safe Working Load (SWL) version starts at just 8.0 tons. This lighter weight means users can legally haul more and heavier cargo within the Gross Vehicle Weight (GVW) limits imposed by road regulations (maximizing payload) and directly increasing per-trip profitability.

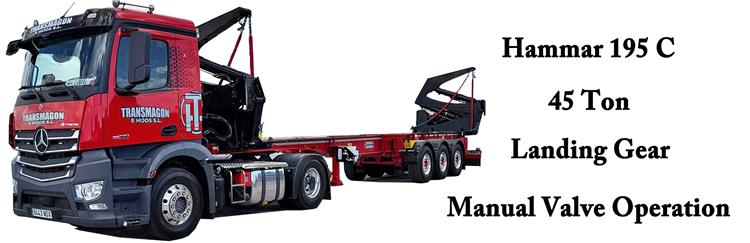

Hammar 195C Side Loader Trailer for Sale In Guyana

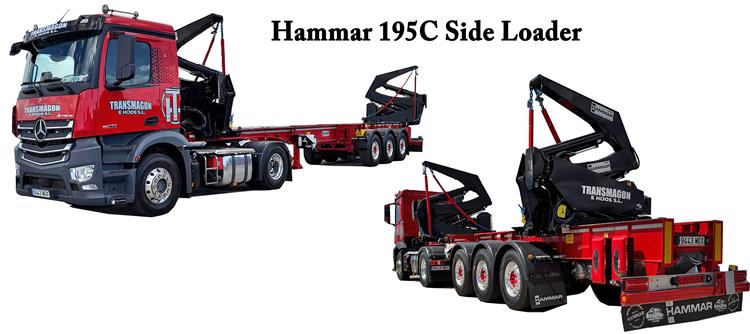

Hammar 195C Side Loader Trailer for Sale In Guyana
Hammar 195C Side Loader Trailer for Sale In Guyana

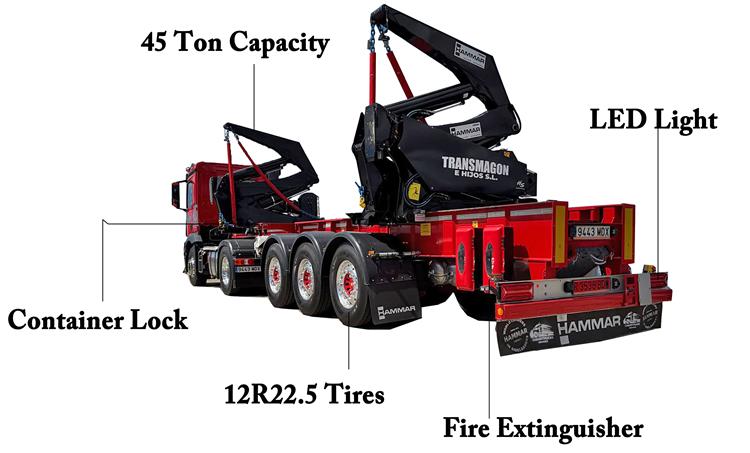

Max. lifting capacity: 45Ton
Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Landing gear: JOST
Power source: Power take-off (equipped)
The Hammar sideloader is the world's best-selling and most classic sideloader/sidelifter model. The "C" in the Hammar 195 C you mentioned stands for Combination (telescopic chassis), which is also the most representative and best-selling configuration in this series.
The core value of the Hammar 195 C sideloader lies in its "independent operation"—it doesn't require tall port gantry cranes or heavy forklifts; one truck and one driver can independently complete the lifting, transporting, and unloading of containers.
The Hammar sideloader chassis length can be hydraulically extended as needed, perfectly compatible with 20-foot and 40-foot standard containers, and in some permitted areas, it can even extend to transport 45-foot containers.
The Hammar 195 C sideloader's front and rear cranes can slide back and forth on the chassis. When transporting a single 20-foot container, adjusting the position of the sliding cranes precisely optimizes axle load distribution (weight distribution), preventing overloading of the truck's front axle or the trailer's rear axle, fully complying with the strict road regulations of various countries.
The Hammar side loader features Hammar's signature extendable and tiltable (double-action) support legs.
The Hammar 195 C side loader's support legs have extremely flexible bases, allowing them to not only firmly plant on the ground but also straddle or be placed on adjacent truck chassis, railcar tracks, or even squeeze into narrow gaps, depending on space constraints.
The Hammar side loader's hydraulic lifting system is highly optimized, capable of independently completing a full cycle of container grabbing, lifting, and locking (or unloading) in just 3 to 4 minutes, demonstrating exceptional efficiency.
