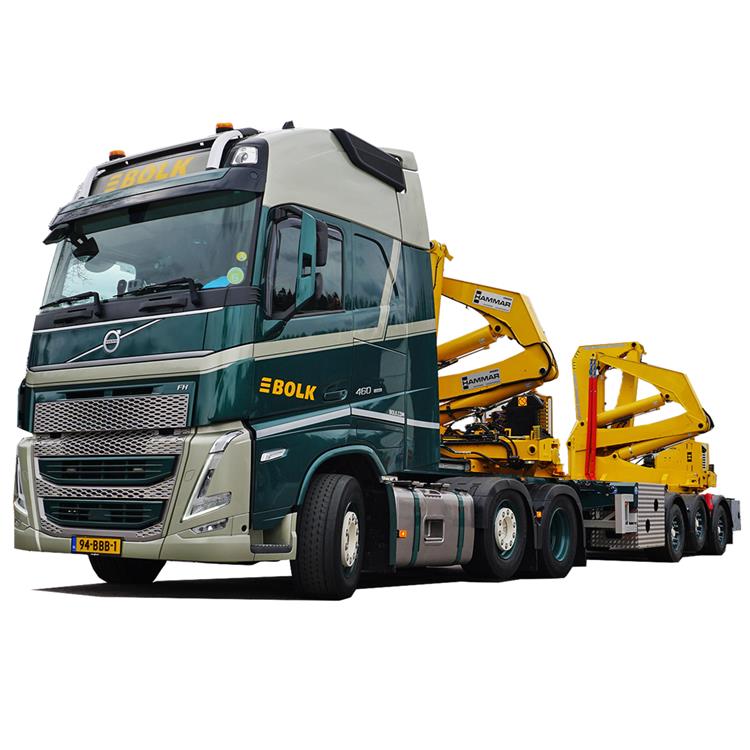

The Hammar 110 HC is a highly classic and efficient model within the side loader sector, primarily designed for the high-frequency transfer and stacking of containers over short to medium distances.
The standard lifting capacity of the Hammar 110 side loader typically ranges from 37 to 45 tons, enabling it to effortlessly handle fully loaded 20-foot or 40-foot ISO standard containers.
The Hammar side loader features an extensive outreach capability, meaning it can perform lifting operations from a considerable distance away from the container—even spanning across railway tracks or other ground-level obstacles.
The Hammar side loader possesses high-stacking capabilities. It can execute "1-over-1" stacking—precisely placing one container directly atop another that is already resting on the ground—thereby significantly enhancing site space utilization efficiency.

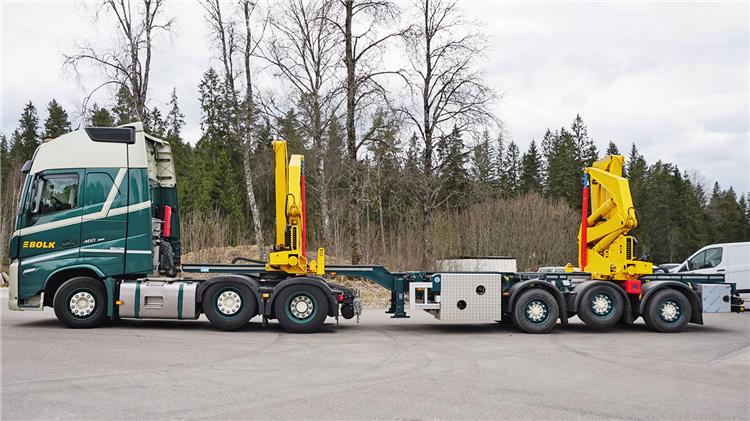

Hammar 110HC Side Loader for Sale In Guyana

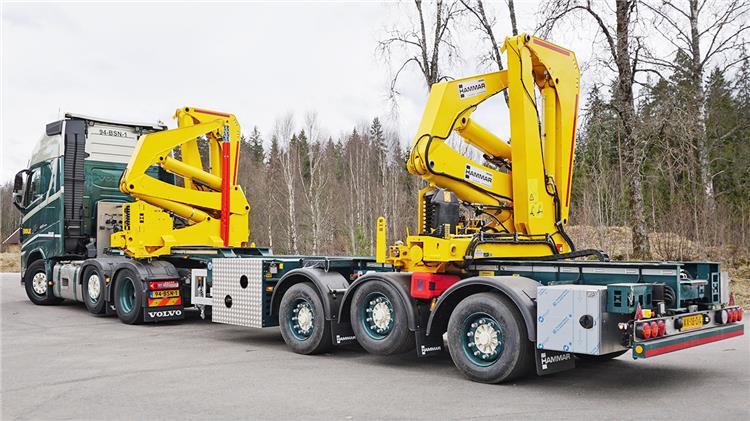

Hammar 110HC Side Loader for Sale In Guyana
Hammar 110HC Side Loader for Sale In Guyana
Hammar 110HC Side Loader for Sale In Guyana

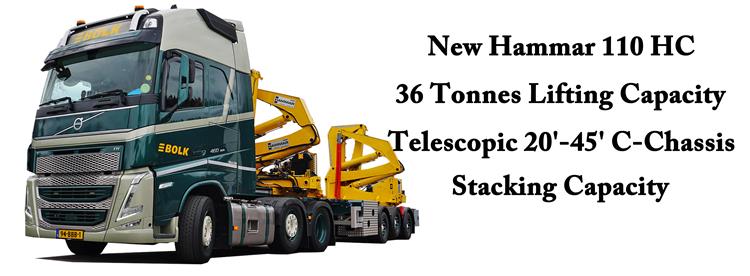

New Hammar 110 Hc
36 Tonnes Lifting Capacity
Telescopic 20'-45' C-Chassis
Stacking Capacity
Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Landing gear: JOST
Power source: Power take-off (equipped)

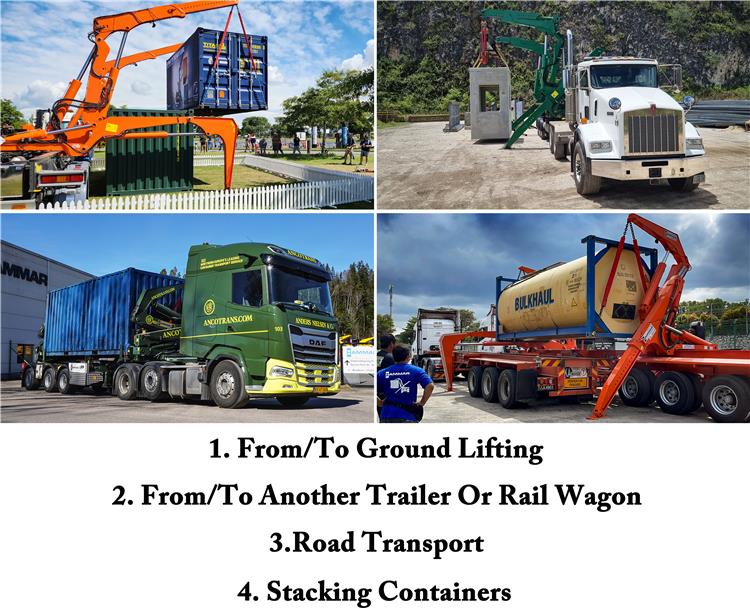

The Hammar 110 side loader is capable of handling 20-foot and 40-foot containers; certain configurations also support the simultaneous lifting of two 20-foot containers.
The Hammar side loader's hydraulic system has been optimized to ensure extremely rapid container lifting and placement speeds; a complete loading or unloading cycle can typically be accomplished within just a few minutes, eliminating the need to rent expensive external equipment such as reach stackers or cranes.
The Hammar side loader's crane booms feature a folding design; when in transport mode, this configuration ensures a low and evenly distributed center of gravity, thereby guaranteeing vehicle stability while traveling at high speeds on highways.
Constructed from high-strength alloy steel, the Hammar 110 side loader minimizes its own tare weight while simultaneously ensuring structural integrity and lifting safety, thereby maximizing the vehicle's legal payload capacity.
The Hammar side loader is equipped with high-performance hydraulic stabilizers that can be extended or retracted to adapt to varying ground conditions, ensuring exceptional stability during lifting operations on soft or uneven terrain.
Equipped with either a radio remote control or a wired handheld controller, the Hammar side loader allows the operator to stand at a vantage point offering the best possible line of sight for remote monitoring, thereby significantly enhancing operational safety.
In warehouse areas where space is restricted or fixed lifting infrastructure is unavailable, the Hammar 110 side loader can directly perform the ground-level placement and stacking of containers on-site. The Hammar sidelifter is the optimal solution for achieving self-sufficiency in container logistics.
The Hammar sidelifter is a heavy-duty side-lifting system that emphasizes both "versatility" and "spatial efficiency." It serves as a highly competitive tool for logistics enterprises that frequently engage in double-stacking operations, or that seek to achieve high turnover rates within complex operational environments.
