37 Ton Sidelifter Container Trailer for Sale in Nigeria

TITAN VEHICLE | 2021-01-19

Sidelifter Container Trailer for sale consists of a semi-trailer and a container side loading and unloading crane, which is suitable for one or two 20-foot or one 40-foot container transportation. Sidelifter Container Trailer for sale has two cranes, front and rear, which are installed on the chassis of a semi-trailer.

The hydraulic power is transmitted through the tractor power take-off, which can slide forward and backward along the chassis. The remote control is operated wirelessly, and manual operation is reserved. Self-loading and unloading of container transportation. It has the characteristics of compact structure, reliable operation, simple operation, and high working efficiency. It is widely used in container handling and transportation in ports, stations, freight yards and other occasions.

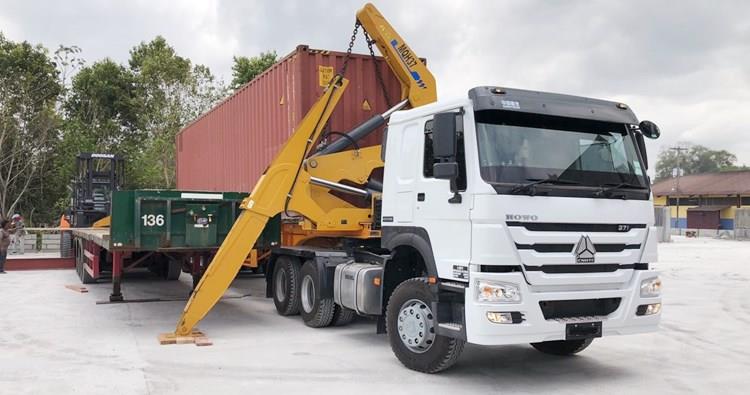

37 ton sidelifter container trailer for sale37 ton sidelifter container trailer for sale



Technical characteristics of Sidelifter Container Trailer for Sale

1. The whole vehicle integrates the functions of loading, unloading and transporting containers, which is efficient and reliable; the main supporting assembly is selected from well-known domestic brands, with reliable quality and safe operation;

2. The 20/40Ft Sidelifter Container Trailer for sale frame longitudinal beam adopts a high-section variable-section design, and the crane structural parts are welded with high-strength steel plates. The whole vehicle has undergone stress testing to meet the load-bearing requirements;

3. Double-pump and double-circuit hydraulic system is adopted, which is not affected by unbalanced load and is reliable in operation; it can slide back and forth, adapting to the loading, unloading and transportation of standard 20-foot and 40-foot containers;

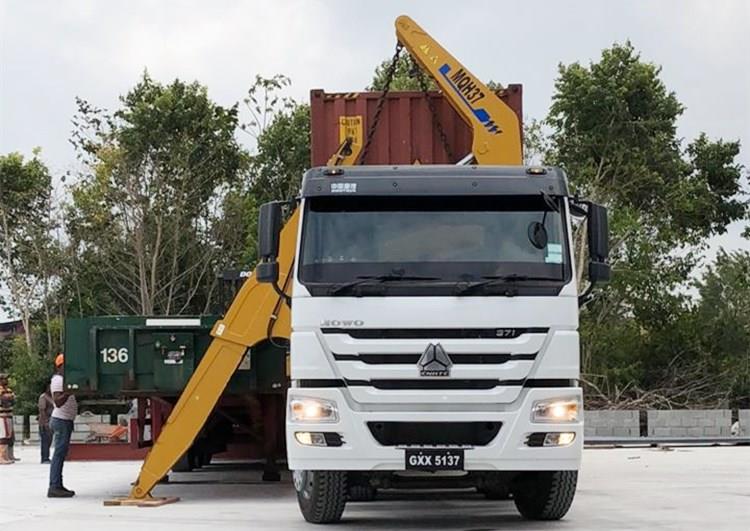

new and used sidelifter container trailer for sale in Nigerianew and used sidelifter container trailer for sale in Nigeria

4. No-load and heavy-load two-speed operation; complete vehicle safety control system, with one-button flameout switch, installed;

5. The lifting operation adopts a wireless remote control system, equipped with an imported remote control, which is easy to operate and reliable in micro-movement; manual emergency operation is retained, and safety insurance;

6. The crane is equipped with an imported centralized lubrication system, which is easy to operate by electric control; the lifting operation adopts an intelligent safety protection system and intelligently locks dangerous operations. The crane is equipped with an imported electromagnetic proportional valve for precise control;

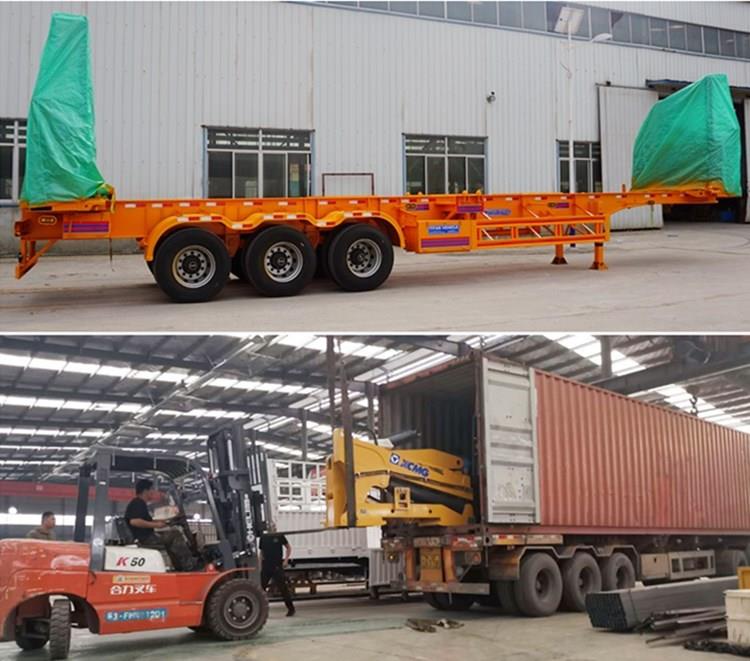

Different Pakcage and Shipping of 20/40Ft side lifter container loader trailerDifferent Package and Shipping of 20/40Ft side lifter container loader trailer

To ensure safety, check whether sidelifter is working normally and in accordance with the requirements of goods to be lifted before the operation. Make sure that the sidelifter is not overloaded. Refer to the sidelifter working range to make sure that the unbalance loading of front and rear does not exceed 10% of that at the corresponding working range, and keep container a proper distance of 300mm~500mm from chassis if it is possible.

Two hydraulic arms, mounted on an attached vehicle, on the trailer of a truck, on a standard 2 or 3 axle truck or on a railroad car, which allows access to the load, make it possible to load or unload standard containers from a maximum weight. The process is executed by means of a radio control system located in the truck.

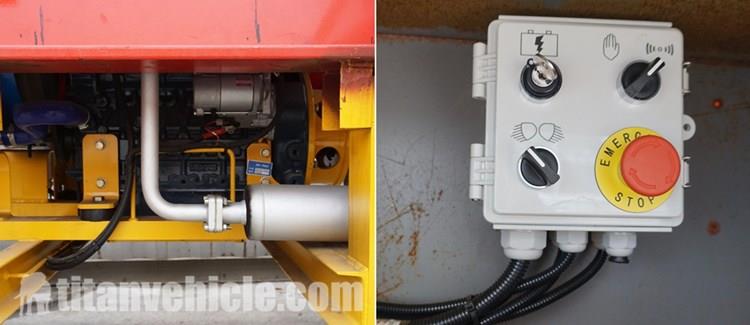

Details of 45t container side loader trailerDetails of 45t container side loader trailer
