This large-scale expansion is also an important function when performing trailer-to-trailer transfers. The trailer-to-trailer transfer refers to the use of a container side loader to load or unload containers onto another trailer.
During this process, the accompanying trailer is parked as close as possible to the forklift, and then the container is transferred. The larger outreach allows additional distance between the supporting trailer and the container side lifter, making alignment easier and avoiding collision damage.
Side Loader Container Trailer for Sale
With a 37ton lifting capacity, the sidelifter is quick and stable and boasts an outreach of more than four meters to provide ease of operation. The sidelifter is available with a separate power pack system with Kubota engine. This means that the sidelifter can operate with any truck without any specific hydraulic fittings, and gives more flexibility for operators with a fleet of trucks. In addition, this model will handle 20 ft containers, 40 ft containers as well as 2 x 20 ft containers side by side.
Another feature is its low stowed position. The container loading is stored in a low-key manner, which can avoid damage from foreign obstacles during transportation, and also avoid damage and contact with the container when being loaded by straddle carriers.
Operators wishing to transport and deliver lighter loads more economically may find this new model becomes their first choice. Simply put, the design seamlessly combines the very best of both worlds – low tare weight and proven strength and durability in one unit. Faced with two competing yet important design objectives, Sidelifter set out to produce a sidelifter that met the optimum needs of low tare weight, while at the same time delivering proven strength and durability.

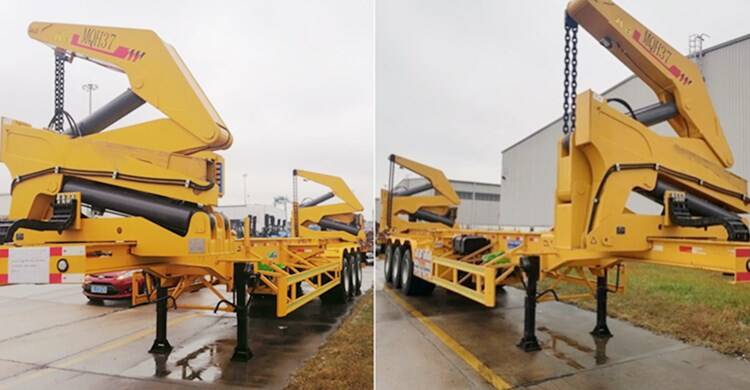

20/40Ft Container Side Loader Trailer
It will also handle the double stacking of containers, an added feature when space is at a premium. Side loader has been tried and tested, where it enjoys a strong presence in the commercial road transport market. For some years the side loader container has become a top-selling product in those countries. Many operators approve of the technology and have been impressed by its performance, e.g. having the ability to lift up to a 36-tonne weight yet answering the payload challenge.
The hydraulic system is fitted with pilot-operated over-center valves on the crane arm cylinders. These are factory pre-set to cope with unforeseen shock loads or attempts to lift more than the crane’s maximum lifting capacity. Prevent the arms from moving unless there is a pressure signal from the main hydraulic valve.
Designers at Titan are constantly improving their rugged container side loader without compromising on ‘safety’ which continues to be their number one focus. Throughout the design process, a constant eye is kept on safety. Although the sidelifter was built to work under the most extreme of conditions, transfers of containers weighing up to 45 ton can still be made easily within a “safe” working envelope.

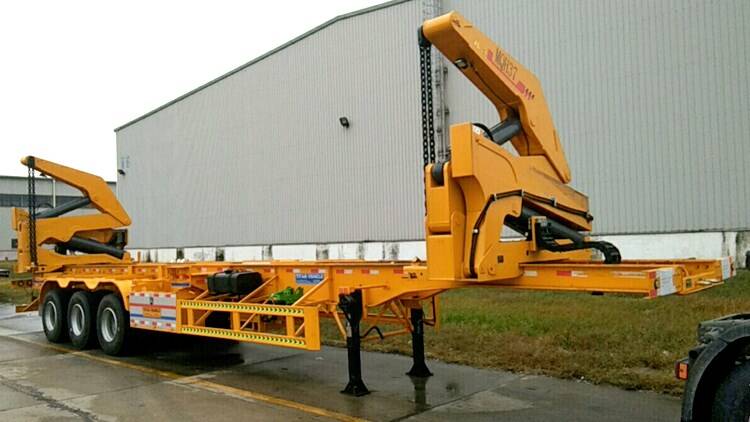

37T Side Lifter Truck Trailer Price
Help keep the movement of the load controlled and constant when being lowered, regardless of the pressure that may be in the cylinder. Ensure that the cylinders are held in position, should the hydraulic system lose pressure. This stops the arms from dropping and prevents any runaway of the load in the event of a hose failure. The hydraulic system is also fitted with a High Speed/Load Sense Unloader Valve which limits working pressure when operating in high-speed mode. This prevents the engine from overload.
An emergency stop button is located on the remote control that will shut down the engine and stop all operations once the button is activated. The container loading trailer stabilizer legs are fitted with an interlock system that prevents lifts from being attempted without the stabilizer legs being deployed. A plunger switch is fitted to the stabilizer housing and is activated when the foot has positive downward pressure. Until that time, the lifting arms are disabled.

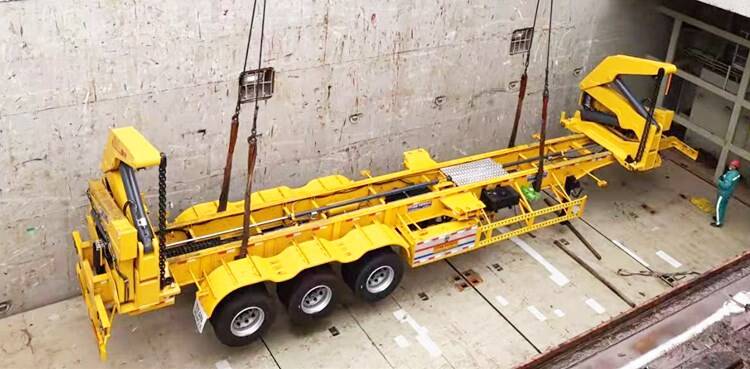

Package of Side Loading Trailer
1. The remote control device of the 37t container side loader is equipped with an emergency stop switch. When an emergency occurs, people can quickly press this button to achieve protection measures.
2. When the boom is folded and retracted, it should be stable, accurate, without crawling, chattering, impact and abnormal increase in driving power. The lifting cylinder of the boom is equipped with a balance valve to ensure that the load stops reliably in the air.
3. The alarm devices of various safety protection boxes of the side self-loading semi-trailer should be accurate, sensitive and reliable.
4. The outrigger cylinder should be equipped with a two-way hydraulic lock to ensure safe operation and driving.

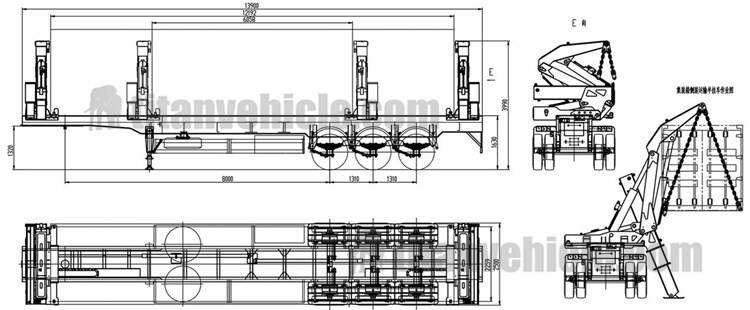

Drawing of 20/40Ft Container Loading Trailer
When the pipeline suddenly bursts, the balance valve acts as a hydraulic lock to keep the heavy objects stationary. When the crane drops heavy objects, it can control the falling speed of the heavy objects to avoid Overspeed.
All operating handles and buttons should be light and flexible, work reliably, and be reasonably arranged, and be easy to operate. It should avoid the interference of various manipulating actions or easily cause misoperation.
