TITAN side lifter enable us to handle containers of all sizes ensuring prompt handling at all times. We pride ourselves on our efficiency. We are committed to excellent service and will continue to deliver prompt service to all our customers.We providing a quality service in container handling with side loader container.

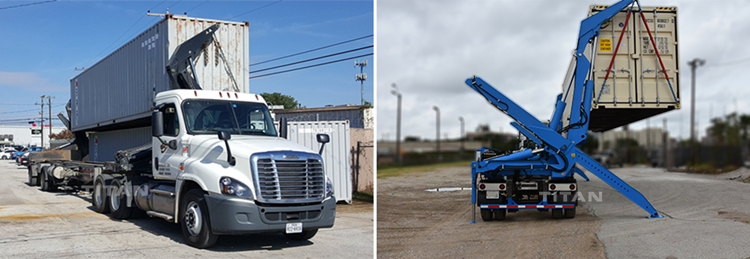

Side lift container transport
TRANSPORT
Sideloaders are increasingly becoming the preferred option for the delivery of shipping containers and for heavy transport.Having your container delivered to your site and placed on the ground has many advantages. Heavy transport allows containers to be unpacked at the client’s convenience with no dock or crane facilities required. Labour for unpacking can be organized conveniently after the container is delivered.
This saves on potential costly delays with labour hire. Unloading a shipping container after it is placed on the ground is a safe alternative to unloading off a heavy transport trailer.Container side loader Transport Service is a specialist in ground level pickup or delivery of containers, container and sea crates alike. We offer driver or passenger side loading for loaded or empty container transport.
LOADED LIFTING
TITAN container side loader transport's unique lift system can do the work no other container transport company in Dallas can. Our self-loading semi-trailer lifts your loaded container and places it at ground level or on a flatbed/chassis. This eliminates the need for heavy fork lifts or cranes. Side loaders do not damage the ground surface as is seen with the traditional method of sliding and dragging a container on and off. This also eliminates the cracking of concrete commonly associated with dropping the container on the ground. Additionally, contents experience minimal shifting due to the container not being tilted or dropped.

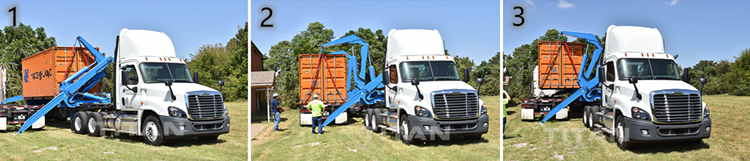

Container side loader
TRANSFER
Our unique swinglift system allows us to easily and quickly transfer storage containers to or from flat bed trailers or chassis for easy loading and unloading of contents. Our last mile service provides a great solution for any logistics company's need to swing containers after a long-distance or rail event.
side loade container for sale
STACKING
Double stacking loaded or empty ISO containers is made quick and easy by our sidelifter trucks, saving you both time and valuable storage space at your location.
Sidelifter generally have the following attributes:
1.Lifting cranes.The hydraulically powered cranes lift the container (from the ground, loading dock, another vehicle, railway wagon or from the top of another container placed on the ground or other location) on and off the chassis. These cranes are placed on top of the sidelifter chassis and they are normally able to travel along the chassis being shifted by hydraulic cylinders or hydraulic motors in order to load varying container lengths.
2.A power source. While typically the cranes are powered by a trailer mounted diesel engine or gasoline engine, the cranes are sometimes powered via a PTO from the truck or tractor.
3.The tractor/cab, which pulls the trailer, and in some cases supplies power through the PTO.This tractor/cab always supplies the compressed air for the wheels' brakes of the sidelifter. Normally, the sidelifter can not be operated without being connected to the Tractor because even if the power pack is under the sidelifter, the tractor provides compressed air for the trailer brakes and also additional stability for the lifting operation.
4.The chassis, which bears the weight of the container when loaded, as well as supports the cranes.The remote control, a device with joysticks & buttons typically attached via a multi-pair electric wire or via a radio signal and that allows the operator to walk around the container and view the unit from various different angles during operation.Sidelifter machines are designed to lift up to a maximum of 45 ton though smaller machines exist.
5.Stabilizing legs. These are fitted with hydraulic legs which are necessary to permit the lifting of up to 45ton loads without tilting the vehicle. These may be adjustable to assist operation on unlevel ground and facilitate greater safety margins and load limits when stacking containers.
6.Chains, which are attached from the top of the cranes to the corner castings at the base of the container during lifting operations. There is a special linking device that when placed between two 20ft containers allows the user to lock two 20ft containers together allowing the containerlifter to lift them as if they were a 40 ft container.

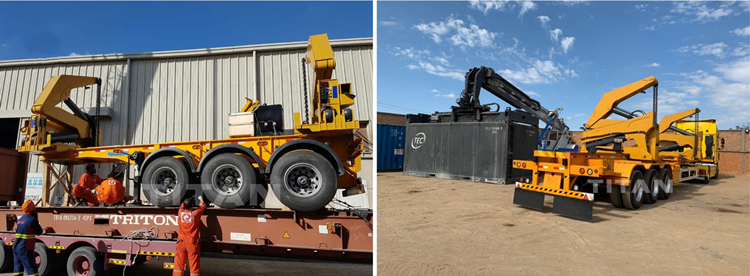

Customers feedback of Container side loader
In addition to controlling the raising and lowering of the cranes, the operator can sometimes tilt the chassis using the stabilising legs which provides a limited ability to operate on non-level ground.Some sidelifters have a telescopic chassis, sometimes called trombone chassis, allowing the unit to expand and contract in order to accommodate 20 ft, 40ft or even 45 ft containers.
