How to operate and pay attention to safety tips of electronic control system about the side lifter?

| 2020-04-14

TITAN Sidelifter units have been known to overturn like any other crane, especially when lifting weights that are heavier than the maximum allowed weight or when operating at a radius that is bigger than the maximum allowed radius. Sidelifter units must always be operated only by trained personnel.

Sidelifter container trailer for saleSidelifter container trailer for sale


1.Operation of electrical system

Operation manual

Before operation, be sure to read through this manual carefully to become sufficiently familiar with the procedure for safety, operation and maintenance of this machine.

Pre-operational

Before operation, be sure to perform inspection in accordance with below steps.

1) Check system apparatus and make sure they are not damaged or worn,circuitry without loose.

2) Turn on the power switch.

3) Make sure that the emergency stop function normally.

4) Understand the safety characters and remote control functions of this manual.

After the procedures above is finished, remote control system and equipments can be operated.



side loader chassisSide loader chassis


2.Electrical system operation

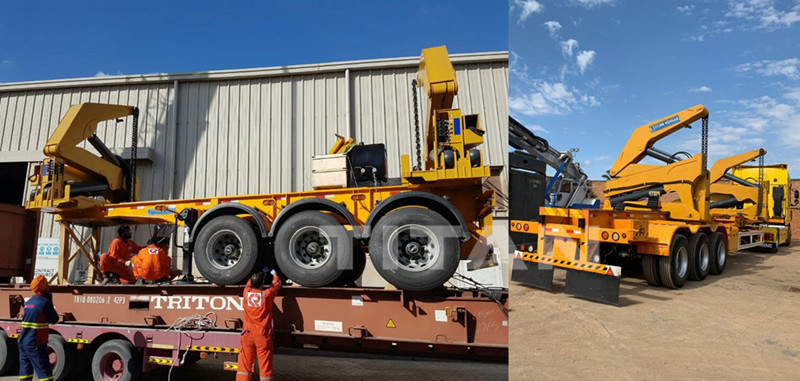

sidelifter container trailer for saleSidelifter container trailer for sale

Electrical system summary

This electrical control contains of the Titan container lift the below function module: wireless remote control and illumination during night work. Main electrical element contains remote control and jacklight etc.Notice: Direct current of 12V can be used only for this electrical system.

Remote control

Container side loader trailer adopt remote control which is made to order for ambient environment ,performance need, operation process and standard, What we used is wireless remote control, its receivesr need to fixed installating, The protection grade of the receiver is very high, it can be installed in the open air. but it may prolong the service life of the receicer if installe it in the electric control cabinet.

Installation size of remote control receiverRemote control receiver

Installation of this electrical system

This electrical system adopt electric control box and junction box to arrange wire ,joint plug. Wire arrangement is simple, and easy to install. If what you purchased is the whole set of our equipment(including front hoisting device ,rear hoisting device, chassis),all electrical elements and wiring harness have been installed on the device, should be used it in accordance with instruction manual. If what you purchased is the upper equipment(contains front hoisting device , rear hoisting device ), be sure to perform simple installation before use. Below will carry on simple introduction which states clearly installation of key electric component.

Jacklight

For satisfying the need of night work, the lower surface of front and rear hoisting device is equipped with a flooflight separately.

What is side loaderWhat is side loader

Side loader specificationsSide loader specifications

Electric control box

Electric control box is the nerve center of this electrical control system, it take on dual task of control and junction, same as remote control receiver, we suggest that install it in the identical electric control cabinet with remote control.

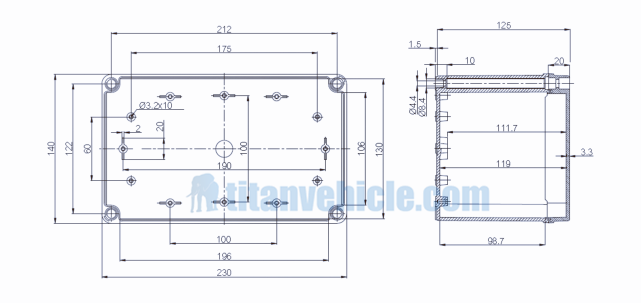

Electric control boxElectric control box


3.Safety notice of electric control system

 Safety information

1) Note: understand product performance and information, make it getting easier for operation.

2) Caution: Actions that disobey or neglect the operation instructions may result in damage to equipment.

3) Warning! Actions that disobey or neglect the operation instructions may result in serious injury or death.

Electric system safety

All the operator will have to go into strict training, and operate the machine according to the procedures of this manual. No one is permitted to operate the machinery without proper training.Improper operation and use may result in dangerous condition, includes:

1) Operator and other person may be injured or dead.

2) Machine and other equipment may to be damaged

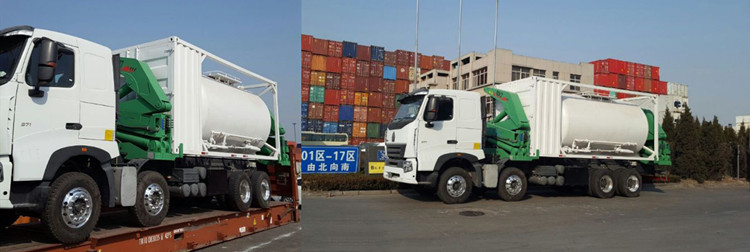

Side lifter truckSide lifter truck

Emergency stop

The systen has two emergency stop button, one is located on the panel,which set the vehicle end, namely, emergency stop buton 1, the other is located on the remote control, i.e. emergency stop button 2.One of the most important functions of the system is emergecy stop, all movements of front and rear lift equipment will be stopped if any of the emergency stop is pressed down, system will neglect other signs if emergency stop sign appeared.

Warning: before operation, check emergency stop button and make sure that it is in normal state.

Potential risk source

When use remote control to operate the machine , it may have obatacle in the view of operator, or some operation beyond the view of operator, so:

1) Operator should have clear view on equipment being operated, do not operate if it is difficult to see.

2) Be sure to cut off remote control power when operator stand far from equipment.

3) Be sure to cut off power when perform installation and maintenance.

4) Do not modificate or remove the safety features of system.
