Modern day wind farms are becoming major contributors to the world power supply, serving as proof of the interest and commitment to using alternative energy. But these farms couldn’t be built without the equipment used to transport the turbine components from the manufacturer to the construction site. In the past, trailers used to mobilize the equipment on site lacked the safety, easy-of-use and the hauling capacity required of today’s offerings.
TITAN's wind turbine blade trailer — TITAN VEHICLE is among the most innovative and advanced trailers in China. The wind turbine blade trailer is a leading edge,innovative wind turbine blade trailer to satisfy all your wind energy transportation needs.With fewer mechanical connections from the fifth wheel to the steered axle, you can save on height, weight, and maintenance.With its customized steering functionality, you can drive forward and backwards.Its automatic centering device, when active above a certain speed, offers you the stability of a fixed axle.

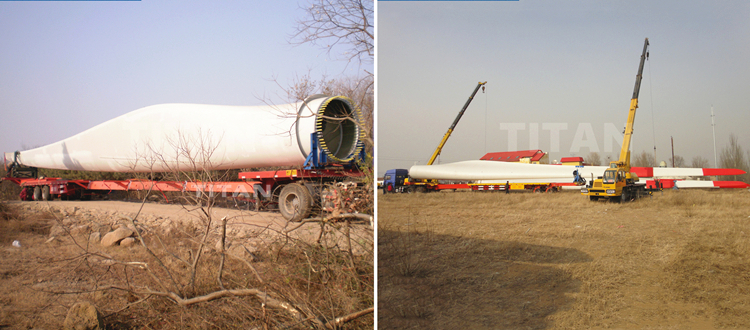

Wind trubine blade trailer
Advantage:
These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.
Drawback:
It is purely designed to take up wind turbine blade loads. That means it is unlikely that you will use it for other uses. Some people prefer renting it than buying them, especially when there are different types of workloads to be taken care of.

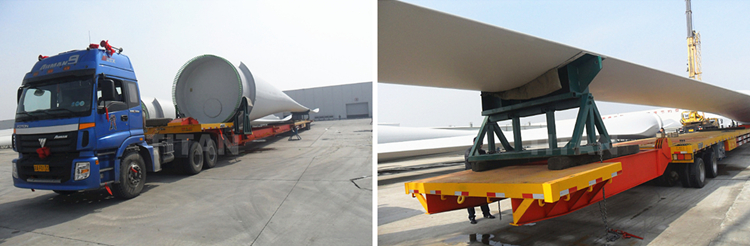

Wind Turbine Tower Transport
This extendable trailer stretches out to 165 ft.Among the longest blade trailers in the industry. Of course, if the closed length does not have to conform to highway regulations, the open length can be made longer.
This ASM technology is a fully dedicated microprocessor-controlled, electronic over hydraulic steering system which uses a software program to actuate axle turns.Because BladeMaster can effortlessly and continuously drive around tight corners, it is ideal for transporting long and cumbersome windmill blades.As it turns, the truck sends a signal through the kingpin sensor, specifying the radius needed by the rear axles to curve around the corner – which allows for a tighter radius than traditionally made blade trailers.The steering – independent of speed — gives you the optimal steering angle, in all types of circumstances.You can check the alarms and calibration through a display, via its PC application.
TITAN VEHICLE can manoeuver side roads and narrow windmill site roads more easily and quickly, with less support vehicles, and thus help you cut costs to transport windmill blades.In the wake of a burgeoning global wind energy market, Thru-Way Trailer’s specialized trailers are uniquely poised to help transport large wind turbine components.
The gooseneck provides a connecting point of the trailer to the truck. It is designed to lift up and down to meet the different height of the 5th wheel of a truck. When the truck steers, gooseneck can pass the signal, and the trailer starts to steer.The steering system includes a steering function for the rear axles to help trailer get through a curved road due to the 62 m length of the trailer.There are three steering structure configurations namely: hydraulic bogies, turntable steering and axle steering.

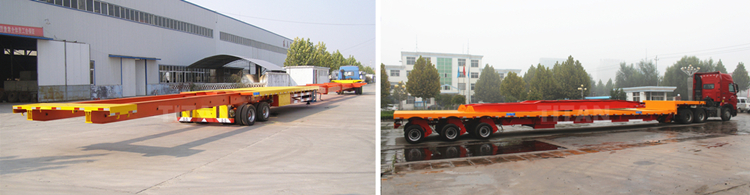

The extendable beam feature is designed to allow for elongation to cater for different transportation needs. Due to the overall length of the trailer needed in this section, tough and strong materials with a yield strength of at least 460 MPa is used.This makes sure that the beam doesn’t sag during operations. At this section, the trailer can be adjusted to the desired length to take up the task at hand.
The tail platform forms the rear section of the trailer. It can either be a folding or pulling platform configuration. Therefore, users can choose a telescopic trailer based on these tail platform configurations.
These can be used to transport both wind blades and the tower. This is the kind of trailer that you need if you want to handle the different kinds of loads in your operations. Its design and construction are meant to take care of these needs.Wind turbine blade trailer , trailer chassis according to customer transport need choose 3 lines 6 axles gooseneck lowbed trailer , the wind blade adapter according to customer wind blade model to design.Customer using turbine wind blade haul trailer transport turbine blade to high mountain . wind blade transport machine include two 360° turntable , can meet mountain rough road condition and all kinds of turns.

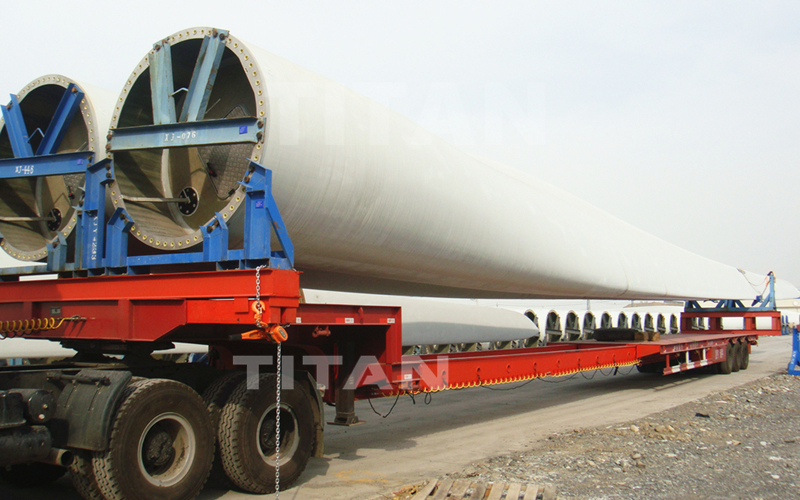

Customers feedback of the wind turbine blade trailer
TITAN believes that capturing the wind requires more than just insight and ingenuity. It takes long- lasting, light weight specialized trailers—made to conquer the most rugged tower sites on Earth.If you have interested in wind blade haul trailer , welcome to ask more information , hope our turbine wind blade transport trailer can provide good help to your project.
