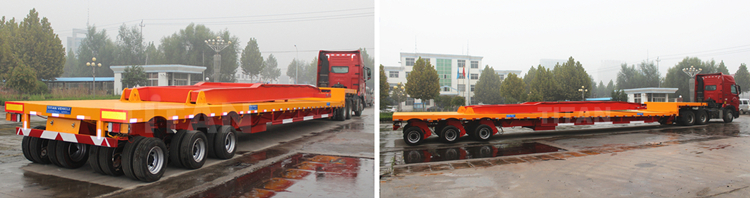

There are key aspects that determine the choice of a trailer to pick ranging from its quality to its efficiency and reliability during operations. For wind turbine blades/windmill towers, the kind of trailers to choose from include:Telescopic trailers,Specific blade trailers,etc.
These can be used to transport both wind blades and the tower. This is the kind of trailer that you need if you want to handle the different kinds of loads in your operations. Its design and construction are meant to take care of these needs.
The extendable beam feature is designed to allow for elongation to cater for different transportation needs. Due to the overall length of the trailer needed in this section, tough and strong materials with a yield strength of at least 460 MPa is used.This makes sure that the beam doesn’t sag during operations. At this section, the trailer can be adjusted to the desired length to take up the task at hand.

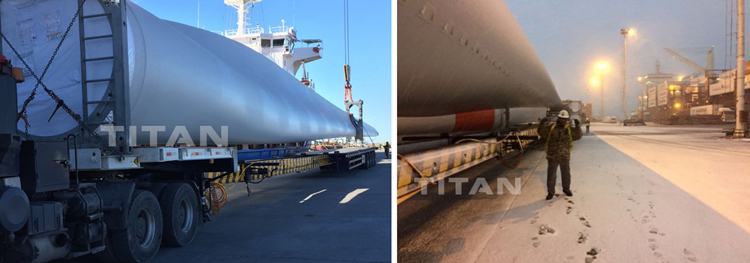

Wind turbine blade transportation
The tail platform forms the rear section of the trailer. It can either be a folding or pulling platform configuration. Therefore, users can choose a telescopic trailer based on these tail platform configurations.
The goose-neck provides a connecting point of the trailer to the truck. It is designed to lift up and down to meet the different height of the 5th wheel of a truck. When the truck steers, goose-neck can pass the signal, and the trailer starts to steer.The steering system includes a steering function for the rear axles to help trailer get through a curved road due to the 62 m length of the trailer.
Its structure comprises:
A Gooseneck;A steering mechanism;An extendable beam;The tail platform.
There are three steering structure configurations namely: hydraulic bogies, turntable steering and axle steering.
Advantage of Telescopic Trailers:
Reliable and Efficient. Constructed of high yield strength material, telescopic trailers are reliable in terms of safety and general transportation needs.
It’s easy to use. The trailer comes in a simple design that is easy to use and operate either hands-on or remotely. Loading and offloading cargo are made safe and simple for operators to manage the operations in an effortless manner.
It can transport other kinds of oversized cargoes, not only the blades and tower. Therefore, the user can put the trailer into many other uses other than for transporting wind turbine blades.
One notable advantage of this trailer is that it is a better match for different sizes of the tower. Therefore, users are not limited to a specific type and size of the tower.
The trailer provides better safety measures. This is very important for operations hence an important factor to consider when buying a trailer.
Owing to its ability to carry both wind turbine blades and windmill towers loads, it gives the user and efficient option for transportation.
In this design structure, the turbine blade is fixed on the adapter. What makes this trailer special is that the adaptor is customized for the blade.
Although usually made from the best materials with sufficient yield strength, their custom design for taking blades may not make it a fit choice for other types of loads.
That means it will unlikely be used for another function. It is the kind of trailer you need if all you want to do is transport wind turbine blades only.

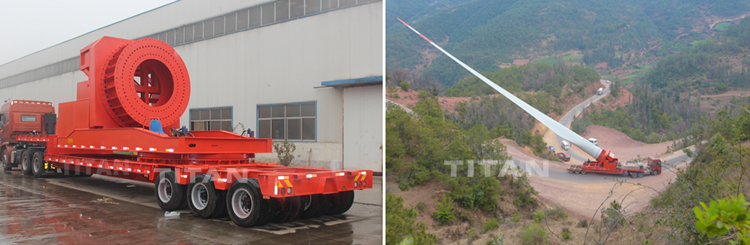

Windmill blade trailer
Advantage:
These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.
Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.
The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.
Drawback:
It is purely designed to take up wind turbine blade loads. That means it is unlikely that you will use it for other uses. Some people prefer renting it than buying them, especially when there are different types of workloads to be taken care of.
Customers feedback with windmill blade trailer
Wind turbine blades and windmill towers trailer, just like for any other type of trailer must be thoroughly scrutinized before making the final buy decision.After identifying your needs, you should be able to know the kind of trailer you are looking for. However, that is not all that you will always need.
There are some other aspects to look into including the trailer quality, delivery times, ability to customize and its reliability among others.Need more details of extendable trailer,you can contact us.
