Ghana customer ordered 3 sets dump trailers in July, and the factory is now in production.
A dump truck, known also as a dumper truck or tipper truck, is used for taking dumps (such as sand, gravel, or demolition waste) for construction as well as coal. For the cost of ownership and operation, dump trucks are a major investment for many companies. However, they can usually save a lot of money for the company. Are you considering buying a dump truck for your business?
TITAN Tipper trailer can be used in many other fields such as construction, agriculture, etc. Hydraulic dump trailer can be customized from 15 tons to 80 tons, 80 tons to 120 tons, 120 tons-180 tons of different tonnage according to the different cargoes.
They have different shapes and types, which are divided into side tipper trailer and rear tipping trailer.skeleton dump trailer, and flatbed type tipping trailer.The common volumes are 30 cubic meters, 32 cubic meters, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters and so on.

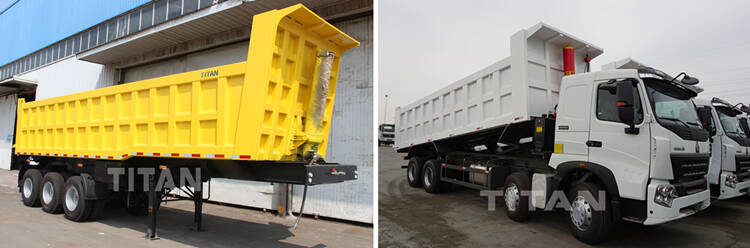

3 Axle Tipper Semi Trailer
TITAN dump tipper trailers have different load capacities: 24 cubics, 30 cubics, 35 cubics, 45 cubic, and different types: standard, U-shape tip trailer, flatbed container tipper trailer, skeleton dumper trailer, side dump truck trailers.
A rear tipping trailer also known as a rear tipper trailer works by offloading cargo towards the back area. Dump trailers will help you move and unload bulk cargo in a very simple and effective way. Especially when dealing with large jobs. Through carefully designed unloading mechanism, operation safety can be well maintained. The rear tipper design is meant to facilitate the offloading process.
Once the back of your trailer is locked, you can load your cargo in that position. On arriving at your destination, the front side of the tipper trailer gets raised causing your cargo to drop off from the back.
The design is meant to allow side dumping and there is a reason for that. You may be forced to do side dumping in areas where there isn’t sufficient space.
The side tipper makes use of hydraulic pumps and hydraulic motors and a dump-bucket to one side. The remaining side gives you the option of opening and locking it during your job operations.

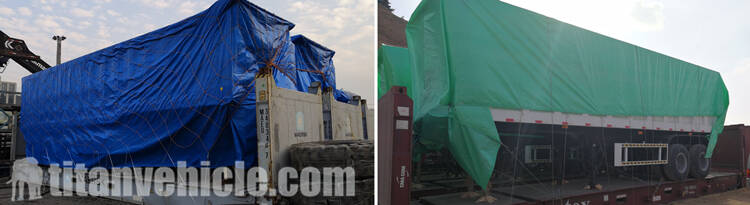

Package of 60T Dump Trailer In Ghana
TITAN can provide customers with different models according to different workplaces and load requirements. Such as HOWO 6×4 tipper truck, HOWO 8×4 dump truck.
Today, virtually all dump trucks operate by hydraulics and they come in a variety of configurations each designed to accomplish a specific task in the construction material supply chain.
Standard dump truck
1.For transportation distances over 200 kilometers, it is best to use 8X4 to load more goods.
2.Urban buildings: These trucks usually drive on urban roads with a travel distance of less than 200 km. 336hp or 380hp engine power is the best choice. Choose 6 × 4 or 8X4 tractor according to the load capacity.
3.Mine place: According to your requirements, the engine can choose 290 ~ 420hp. Choosing a short wheelbase improves the strength of the frame and the passability of the vehicle. For the self-unloading system, you can choose mid-top or front-top.

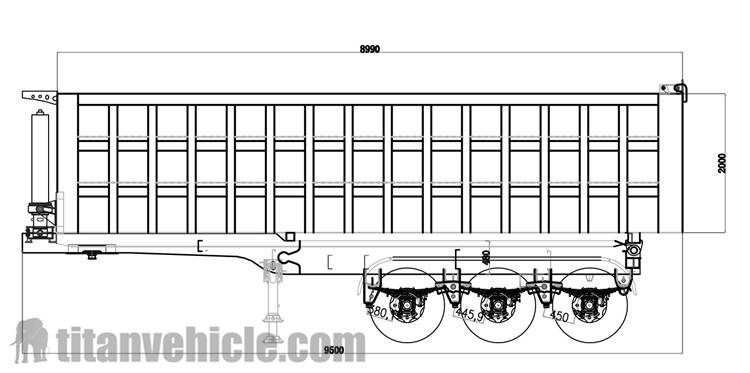

Drawing of 3 Axle Tipper Trailer In Ghana
Maintenance knowledge
1.The diesel pump may be burned because there is too little diesel in the fuel tank to dissipate heat from the diesel pump.When the indicator light of the fuel gauge lights up, you should refuel immediately.
2.Refueling time is best in the morning, especially in the hot summer, to avoid a large amount of gas in the fuel tank, resulting in less refueling. After mentioning the new dump truck, the fuel must be filled up for the first time. This is to check whether the fuel gauge of the new tipper trailer is accurate.
3.For the economy of the vehicle, except for the first time, it is not necessary to fill up the fuel tank in the future. Generally, it can be increased to 2/3.

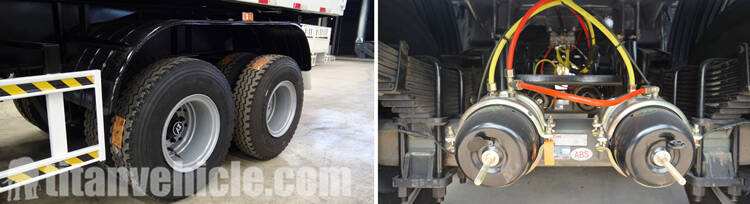

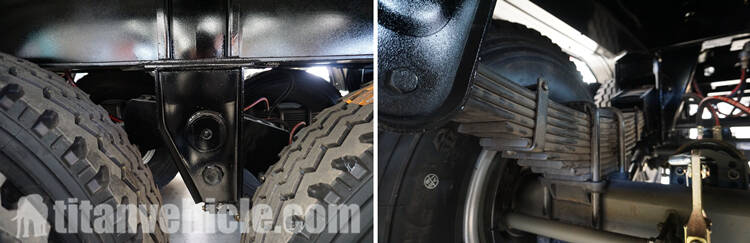

Details of Dump Tipper trailer For sale
New dump truck inspection
1. During the lifting process, pay attention to check whether the hydraulic cylinder, gear pump, control valve and other components work normally, such as whether the hydraulic lifting is stuck, bouncing and abnormal noise.
2. After 8-10 times of no-load lifting test, it works normally. It can be regarded as good dumping performance without oil and gas leakage.
Dump Semi Trailer Price
3. Check whether the amount of oil in the hydraulic oil tank is sufficient, otherwise the full amount of oil must be added according to the requirements of the prescribed oil grade. At the same time, check the manual operation valve, the air circuit for leaks, and the hydraulic system for leaks.
4. Under no-load conditions, carry out the lifting test according to the operating procedure of the lifting mechanism of the dumping mechanism.

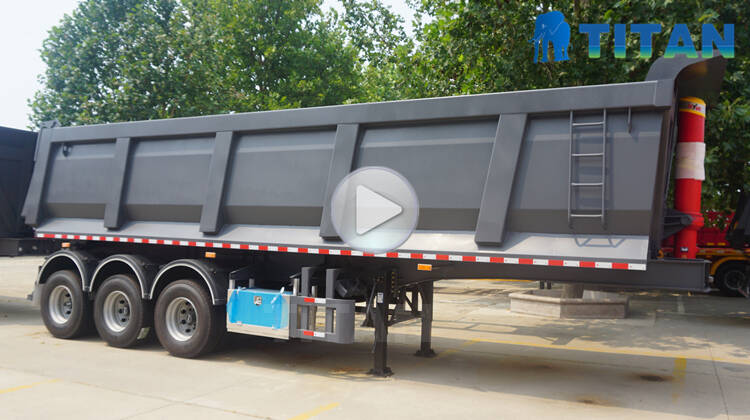

Through this videos, you can learn about different types of tipper semi-trailers(like 2 axle dump semi trailers, 3 axle tipper trailer, U shape tipper semi trailer, tipping chassis semi trailer, flatbed dump trailer)
