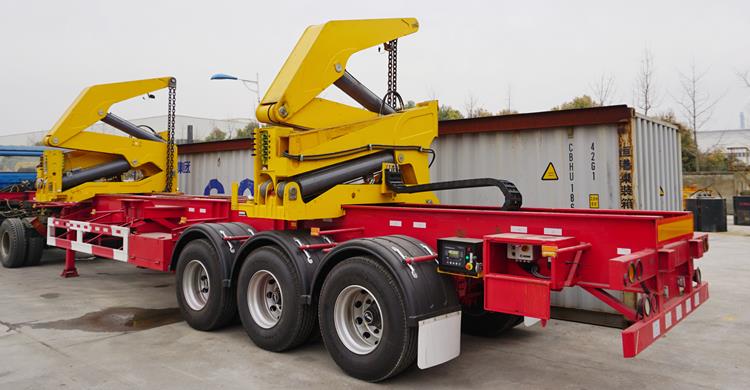

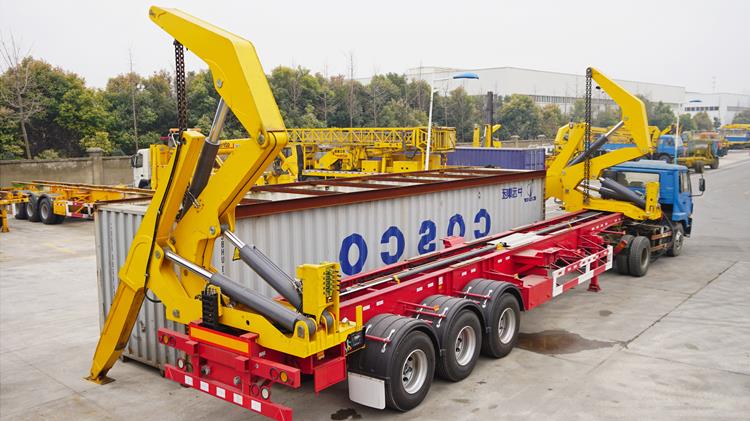

40Ft Side Lifter Trailer will be sent to Gabon
The 40ft side lifter trailer for sale that has just been completed has been sent to Gabon. The customer learned about us from a local friend. He found us in and informed us of his requirements. We gave him several options.
Customer spent a long time understanding the details of the 40ft side lifter trailer for sale, we also try our best to answer every question of the customer.
The customer is also worried about the operation problem because This is the customer's first use. We inform customers that the operation is very simple. And many customers who first used it, they learned it for about 1 day. Each of our 40ft side lifter trailer for sale will be given a detailed operation manual and operation video. Of course, we will also provide online help 24 hours.The end customer decided to buy a 40ft side lifter trailer for sale.
40Ft Side Lifter Trailer will be sent to Gabon
Installation of this electrical system
This electrical system adopts an electric control box and junction box to arrange wire, joint plug. Wire arrangement is simple and easy to install. If what you purchased is the whole set of our equipment(including front hoisting device, rear hoisting device, chassis), all electrical elements and wiring harness have been installed on the device, should be used in accordance with an instruction manual.
Electrical system summary
This electrical control contains the TITAN 40ft side lifter trailer the below function module: wireless remote control and illumination during night work. The main electrical element contains remote control and jacklight etc. Notice: Direct current of 12V can be used only for this electrical system.
Remote control
40Ft side lifter trailer for sale adopts remote control which is made to order for the ambient environment, performance need, operation process and standard, What we used is wireless remote control, its receiver needs to fixed installation, The protection grade of the receiver is very high, it can be installed in the open air. but it may prolong the service life of the receiver is installed in the electric control cabinet.
40Ft Side Lifter Trailer will be sent to Gabon

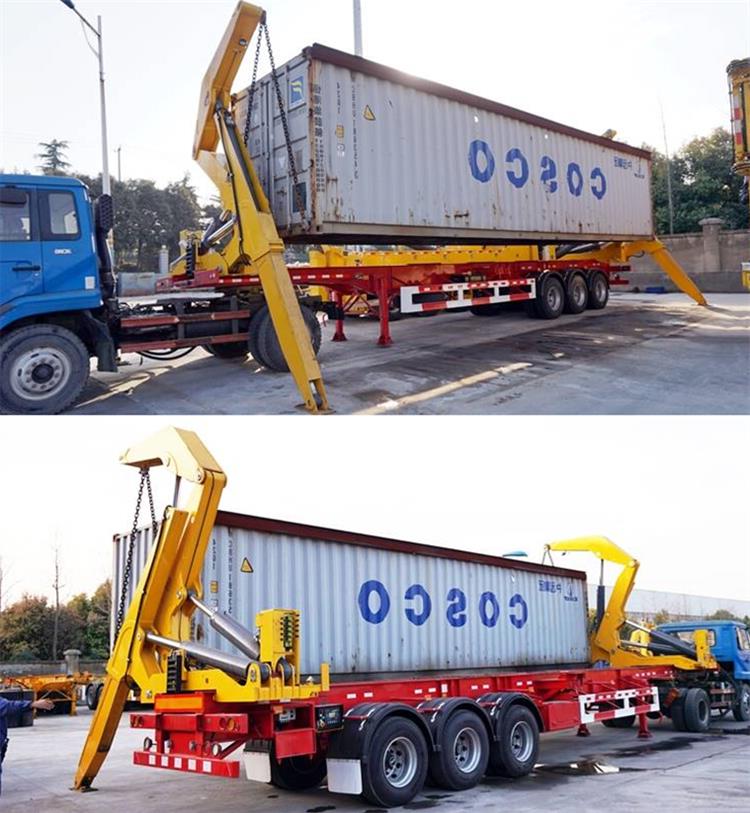

The swing lifts deliver the container and lift it on and off the deck for shippers to process the container at ground level. Fast, safe and easy for a trained driver to operate, swing lifts are an excellent way to position containers on the ground. There are some operations of the unloading about side loader.
1) Place the semi-suspension 40ft side lifter trailer in an appropriate position close to the container, it is best to maintain a distance of 300mm~500mm between the vehicle and the container;
2) Open the engine control box, start the engine, let the engine run at idle speed for about 10s, and then adjust it to 1600 r/min ~ 2600 r/min through the regulator handle;
3) Turn on the power supply of the remote control and the power supply of the electrical system control box;
4) Adjust and replace the equipment to place the front and rear lifting equipment in the correct position. When the 40-foot container is lifted, the sliding cylinder of the replacement device is fully extended, and when the 40ft side lifter trailer, it is fully closed
40Ft Side Lifter Trailer will be sent to Gabon
5) Extend the inclined stabilizer legs. Do not operate the boom before fully supporting the stabilizer legs
6) Open the side lifter to a suitable position and lock the four locks of the chain on the bottom of the container
7) Control the boom with remote control, lift the container and install it on the 40ft side lifter trailer without interference
8) Rotate the rotary lock to lock the container and retract the boom and stabilizer in sequence
