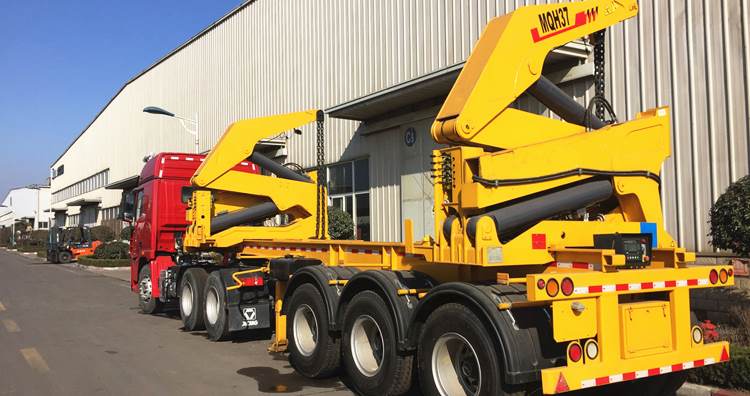

MQH37A This product has a number of advanced core technologies and a number of national patents. It can complete various operations such as container self-loading and unloading, vehicle-to-vehicle transfer, etc., with large lifting capacity, wide operating range, wide application range, and general use. It has the characteristics of good performance and strong loading and unloading guarantee ability, which can meet the lifting requirements of containers in different positions.
It is widely used in container logistics, port freight transfer stations, railway container handling stations, warehouses, military logistics support, customs departments and other container distribution centers. The characteristics of "fast, flexible, efficient and convenient" have been recognized and recognized by more and more people.
The vehicle has a long average trouble-free working time, stable and reliable performance, compact and reasonable layout, beautiful and stylish, easy to use and easy to maintain.
1. Patented technology of sliding container side self-loading and unloading transport vehicle
Through the sliding movement of the front and rear cranes, the loading and unloading of 20ft or 40ft containers or similar containers can be realized. The application range is wide and the versatility is good, which greatly expands the use of the equipment.
2. Patented technology of double pump and double branch circuit
The whole vehicle is powered by an independent engine with adjustable speed. The hydraulic oil output by the double pump is
After the confluence valve group, it is transported to the multi-way valve group of the front and rear side cranes connected in series to drive the respective actuators, which has a wider range of linkage adaptability, which greatly guarantees the stability and reliability of the hoisting process.
3. Electro-hydraulic load adaptive patented technology of the side loader semi trailer
High and low pressure double pumps are used, and the two cranes at the front and the rear are supplied with oil after combined flow through the diverter valve, which can realize the large flow of dual pumps at the same time under low pressure conditions and the low pressure pump under high pressure conditions. The small flow rate for high-pressure unloading ensures the efficiency and quality of lifting operations. This technology can not only ensure the stability of the speed switching of the crane under high and low pressure conditions, but also make full use of the output power of the engine, which is more economical.
4. Patented technology of lifting chain twist lock device for container loading and unloading + patented technology of automatic storage
The lifting chain twist lock mechanism for container loading and unloading, the twist lock is automatically rotated and locked in the container corner during the packing operation, will not fall off, and ensure the safety during operation; during transportation, the twist lock can still be automatically locked through the limit device , The repetitiveness of the operator’s transport chain collection and unloading and loading chain is lifted, and the safety during driving is also greatly improved; after the operation is completed, the hoisting chain in the process of hoisting arm recovery is realized by optimizing the movement trajectory and position of the hoisting point The automatic storage greatly improves the comfort of operation and the safety of the whole vehicle.
5. Control system optimization technology
The whole vehicle is reasonably matched with the combination of remote wireless control remote control and advanced load-sensitive electro-hydraulic proportional multi-way valve with pressure compensation in front of the valve. The remote control operation is safe, comfortable and convenient. The panel and handle of the remote control are human-oriented and conform to the movement trend of the machine. Proportional control realizes stepless speed regulation to ensure smooth operation of the whole machine and precise control of subtle movements.
6. Reasonable matching of safety systems
During the operation of the whole machine, there is an intelligent anti-tilt protection system on one side of the outrigger to monitor the stability of the whole machine in real time. If there is a risk of tilting, it can automatically alarm and effectively lock; the other side of the outrigger is protected by a baffle to prevent The container enters the dangerous area. The application of high-strength steel plates has passed advanced software analysis and rigorous testing to ensure safety and reliability; at the same time, high-quality hydraulic seals, high-level electrical protection, safe and reliable locking mechanisms, and practical and safe emergency stop functions have also increased Security guarantee.
Through this videos, you can learn about different types of sidelifter trailers,including 20ft self loader truck, 20ft sidelifter and 40ft container side loader trailer, as well as the process, testing, packaging and customer feedback, etc.
Welcome to click " TITAN side lifter trailer " to get more videos on Youtube.
