1. Application diversity
37 tons lifting capacity, tested up to 45 tons. According to the type of transportation container, it is divided into 20ft and 40ft container side lifter.
According to different transport chassis, it can be divided into self loader truck and sideloader semi trailer. It is mainly used to load containers, and can also be used to load container tank, equipments, wood, etc.
2. Grounding and lifting of containers
Grounding and lifting represent 90% of a sidelifter’s tasks. Once on the ground, the sidelifter goes to another job, while the container can be stuffed or unstuffed more easily, without the need of specific infrastructure such as platforms or loading ramps. Forklifts can therefore enter the container. Side container loader range of equipments allows to handle containers even on rough ground.
Do not hesitate to contact our teams so we can discuss together the perfect product to match your needs.
20/40Ft Hammar Side Loader Trailer for Sale Price In Papua New Guinea
3. Transfer from/to other trailers
When several containers must be delivered in the same yard, the Container side lifter can pick up the containers on the companion trailers to ground them. Waiting time for trucks and trailers is drastically reduced, thus improving the efficiency and profitability of each trip.
4. Double stacking of containers
Lack of space is a recurrent feature of today’s logistics world. Double stacking of containers can be a very useful and economic solution.
TITAN side lifters can double stack two high cube containers on the ground without chain shorteners. It avoids investing in specific equipment. Do not hesitate to contact our teams so we can discuss together the perfect product to match your needs.
20/40Ft Hammar Side Loader Trailer for Sale Price In Papua New Guinea

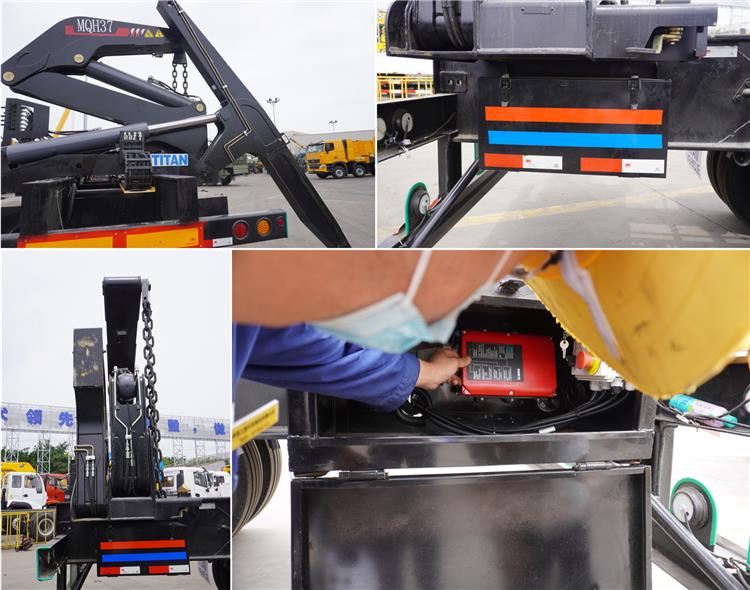

1. Hose, rigid pipe and pipe joint
The minimum burst pressure of the hose is at least 4 times the maximum working pressure, and the minimum burst pressure of the hard pipe and joint is at least 2.5 times the working pressure.
2. Fuel tank
The fuel tank should adopt a single-box double-cavity structure. The cavity and the cavity are completely isolated. One cavity is used to store diesel fuel required for the diesel engine to work, and the other cavity is used to store hydraulic oil. The oil tank should be installed with a level gauge, oil return filter, breathing valve and bottom oil port.
3. Pump
The double pump structure is adopted. The theoretical displacement of the single pump is 60L / min, and the combined flow rate can reach 120 L/min. The double pump structure can meet the rapid extension and retraction of the lifting components during no-load and stable and safe operation at full load.
20/40Ft Hammar Side Loader Trailer for Sale Price In Papua New Guinea
4. Overflow valve
The hydraulic system can realize high-speed (low pressure) and low-speed (high pressure) operation. At high speed, the system pressure passes through the high and low-speed relief valve to ensure the safety of high-speed operation. The main control relief valve pressure is set to 4200 Psi during low-speed operation, thus ensuring the safety of the system during low-speed operation.
5. Hydraulic pressure gauge
When the hydraulic components and pipelines are operated under normal working pressure or test pressure, there will be no system failure or excessive temperature. The hydraulic system is equipped with a high-pressure filter at the pump outlet and an oil return filter in the oil return line. Used to ensure the cleanliness of hydraulic oil.
20/40Ft Hammar Side Loader Trailer for Sale Price In Papua New Guinea

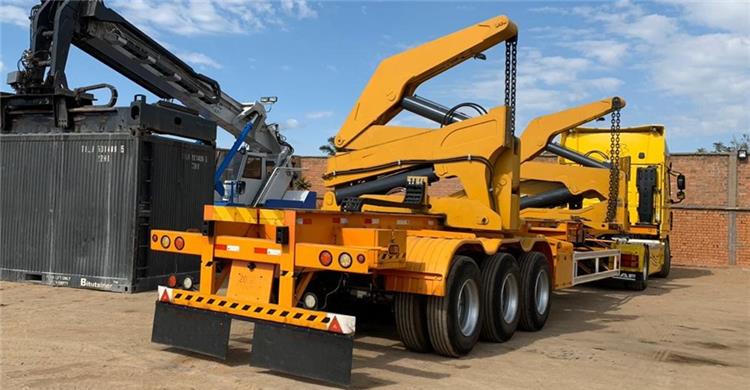

Sidelifter trailer technology can effectively solve the problem of no loading and unloading machinery. The military of many countries have been equipped with container loading trailer.
As a convenient and efficient container loading and unloading vehicle, the container lift trailer can load containers by itself, and it can also load and unload containers for other container carriers (such as flatbed trailer and skeletal trailer). As you can see, box loader for sale is very suitable for areas where there is no container loading and unloading equipment.
TITAn container side loader easily adapts to your operations, making it safe and secure, even in rough operations. It can lift the heaviest containers, even badly positioned or with unevenly reparted load inside. The double extension stabilizers give it impressive stability, allowing you to work on soft or uneven ground.
The multiple applications possible with the side lifter make it an indispensable tool for your organization, whether it is for transfers, grounding, lifting or double stacking.
