12 Units Fence Semi Trailer For Sale In Mozambique

| 2020-08-31

12 Units 3/4 Axle Fence Semi Trailer will be send to Mozambique.

3 Axle Fence semi trailer3 Axle Fence semi trailer

Fence semi trailer also known as an animal transport trailer is used for the transportation of cattle, horses and pigs. The construction of livestock trailer bodies is usually of sidewalls that have tubular truss-type support structures closed in through the use of spaced-parallel and horizontal slats that are fastened to one another.

When purchasing a Fence semi trailer, many friends are very concerned about the quality or how long it can be used. Of course, the two are linked.

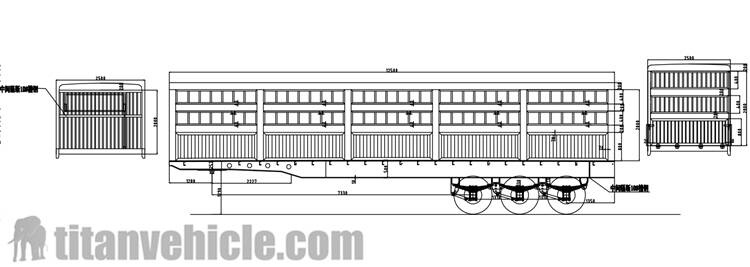

Drawing of Fence semi trailerDrawing of Fence semi trailer

The following points can prove that TITAN semi-trailer has a longer service life than others.

Modular design, intelligent manufacturing

TITAN vehicle adopts advanced intelligent manufacturing equipment such as finite element analysis, modular design, laser cutting machine, robot welding, etc., from the design source to the product processing and manufacturing, the entire process is strictly required to ensure that every product delivered to the customer They are all high-quality and qualified products.

Green and environmental protection, anti-rust and more durable

There are no dead corners in the overall coating, the coating is more uniform in automated production, the inner side of the box and the warehouse fence are covered with coating, rust-proof and durable, and fully respond to the country's requirements for winning the blue sky defense war, and achieve green environmental protection.

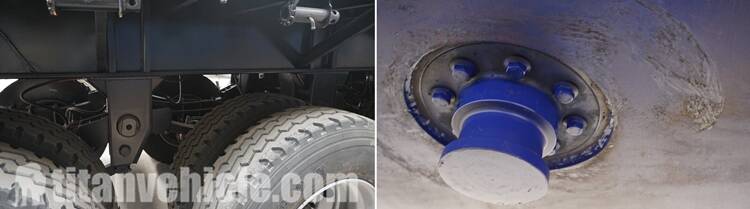

Details of Cargo semi trailerDetails of Cargo semi trailer

Pay more attention to safety and energy saving

Adopting air suspension and disc brakes, the system is continuously optimized and upgraded on the basis of the advantages of traditional air suspension and disc brakes, and its product performance has been greatly improved. The specific advantages are as follows:

1. The bracket adopts a high-strength material upper end closed design structure, which can meet the direct connection of the lower wing plate of a narrow semi-trailer.

2. The guide arm can choose double leaf spring and single leaf spring. The optimized single-leaf guide arm structure, lightweight design, three bridges reduce the weight of more than 200 kg, and has good guidance and super reliability and stability.

60T Cargo Semi Trailer60T Cargo Semi Trailer

3. The airbag adopts an internationally renowned brand (Firestone/Vibak), which has a long life and is more reliable in durability.

4. The guide arm bushing is made of inner and outer steel, and the middle vulcanized rubber design structure has stronger load resistance and more stable vehicles.

5. Reduce tire wear and fuel consumption. Under the same road conditions and load capacity, fuel consumption per 100 kilometers can be reduced by more than 1.2 liters.

6. The turbulence is small, and the air suspension can be adjusted to ensure a constant height of the carriage and reduce cargo damage caused by turbulence.

7. The safety performance is improved, the air suspension transportation is more stable, the center of gravity of the vehicle does not change during operation, the axial and radial stability is better, and the driving is safer and more reliable.

8. Imported brake pads and implanted wear alarm device. Effectively guarantee the braking performance of the vehicle during operation.

9. Brake discs containing alloy elements, anti-cracking, anti-wear and high temperature resistance. Super long warranty of 200,000 kilometers, maintenance-free, brake life up to 10 years and 1.5 million kilometers.

10. High-precision load bearing, long life and low temperature.



Double push rod brake calipers, stable braking performance.

1. Adopt Tiema brand low temperature resistant -35℃ brake air pipe, the same brand as the main engine tractor, which is safer to drive. The whole vehicle wiring harness uses 7-core wiring harness, without any grounding treatment, the lamp can work normally, the use failure rate is low, and it does not need to be replaced for life.

2. Use Phillips pneumatic handshaking joints, air-tight and more durable.

3. The use of 5 series aluminum alloy material 50L air reservoir can effectively avoid frequent use of brakes and insufficient storage air pressure, which may cause spontaneous combustion of tires and brake failure.

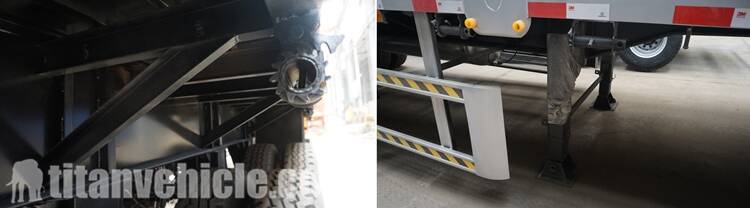

Details of Semi Trailer For Sale In MozambiqueDetails of Semi Trailer For Sale In Mozambique

Below we will introduce you to the knowledge of livestock trailer parts such as landing gear, wheels, and tractor pins.

Landing gear of stake cargo trailer

Side wall trailer support device, commonly known as the landing leg. It is located at the front of the cargo trailer frame and is used after the trailer is separated from the tractor.

The main parts of the outrigger are two-speed gearbox, support sleeve, support rod, transmission screw and support disc. The structure is very simple and the function is very important.

Tractor Pin

The high side trailer and the tractor are all connected by it. It is connected to the traction seat of the main trailer stakes and also bears all the traction. It is an important component.

At present, the traction pins on the market are mainly divided into 4 types, assembly 50, assembly 90, welding 50, welding 90, users can choose according to different models and actual use.



How to maintain the fence trailer in summer?

As the weather gradually rises, the "high temperature sickness" that belongs to the truck will follow. In order to avoid the sudden "high temperature sickness" of the truck during work, we need to carry out a series of safety inspections on the truck's cooling system

Because of the failure of the cooling system, the vehicle cannot work normally, ranging from delaying transportation time and increasing transportation costs, and more importantly, because it cannot effectively handle forced transportation, it will cause damage to the device and bring more maintenance expenses, which is not worth the loss.

Therefore, the vehicle cooling system should be checked regularly to avoid the above troubles.



Get more articles about semi trailer,please click "TITAN semi trailer"
